automatic round bottle rolling labeling machine

Fully Automatic Round Bottle Rolling Labeling Machine for Bottles

Engineered with an open-access web routing path and quick-release mandrel clamps. Operators can unthread an empty liner roll and initialize a fresh 320mm label roll in under 2 minutes, protecting your factory’s OEE (Overall Equipment Effectiveness) scores.

Handling labels up to 320mm at 200 pcs/min requires absolute tension stability. Our rolling sponge belt applies an evenly distributed linear compression grid across the entire height of the container, forcing long wrap-around labels to match perfectly end-to-end without spiral drifting.

Item No :
SKYONE-0063C
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
850W
Weight :
About 185kg
Labeling Accuracy :
±1mm
Labeling Speed :
50-200 pcs/min
Label Size :
L:20-320mm; W:20-100mm
Product Size Diameter :
Diameter:25-100mm; H:25mm-300mm

Inquire Now

Product Detailed Information

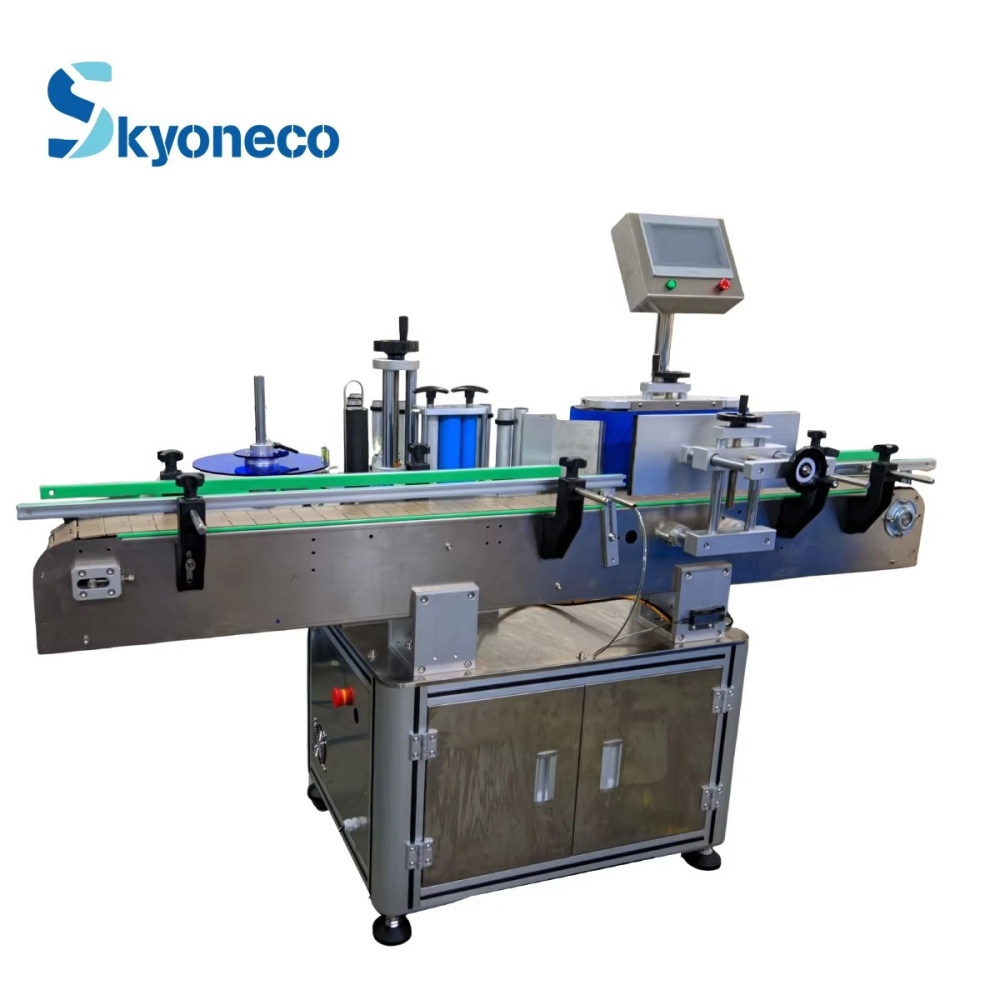

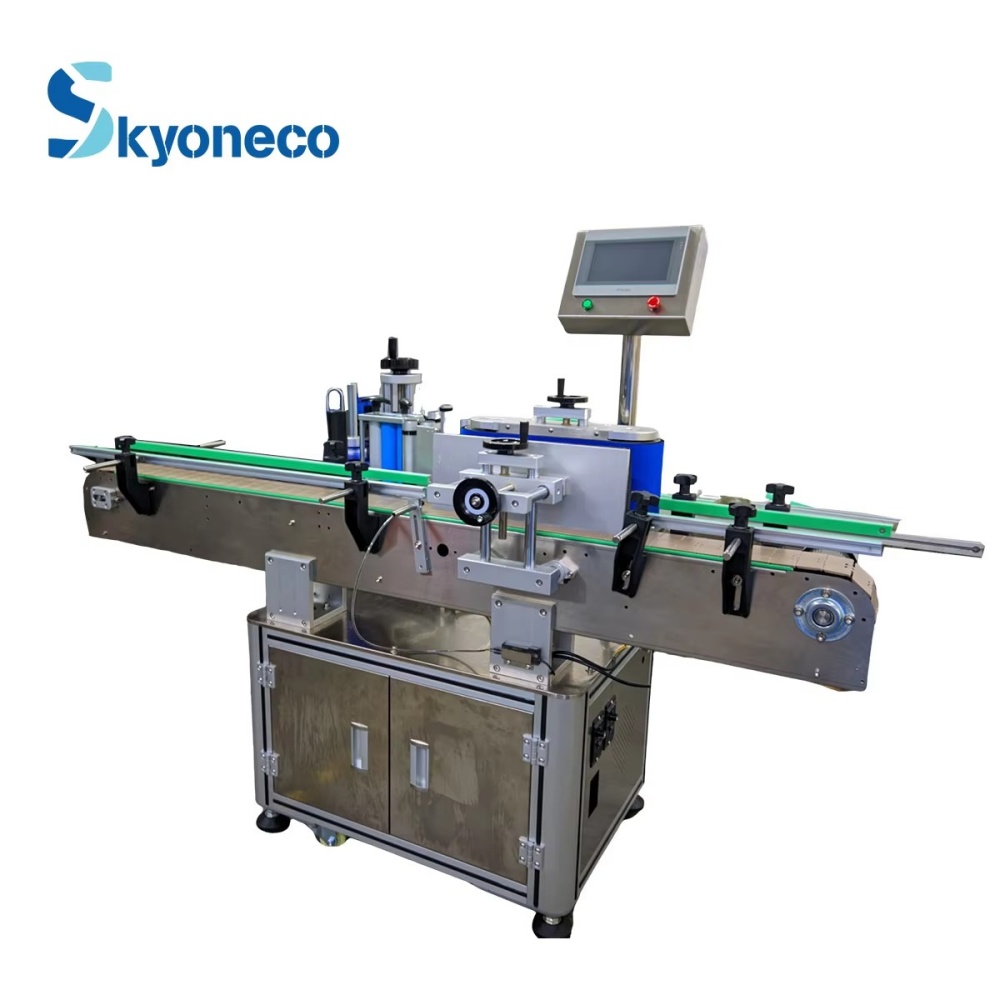

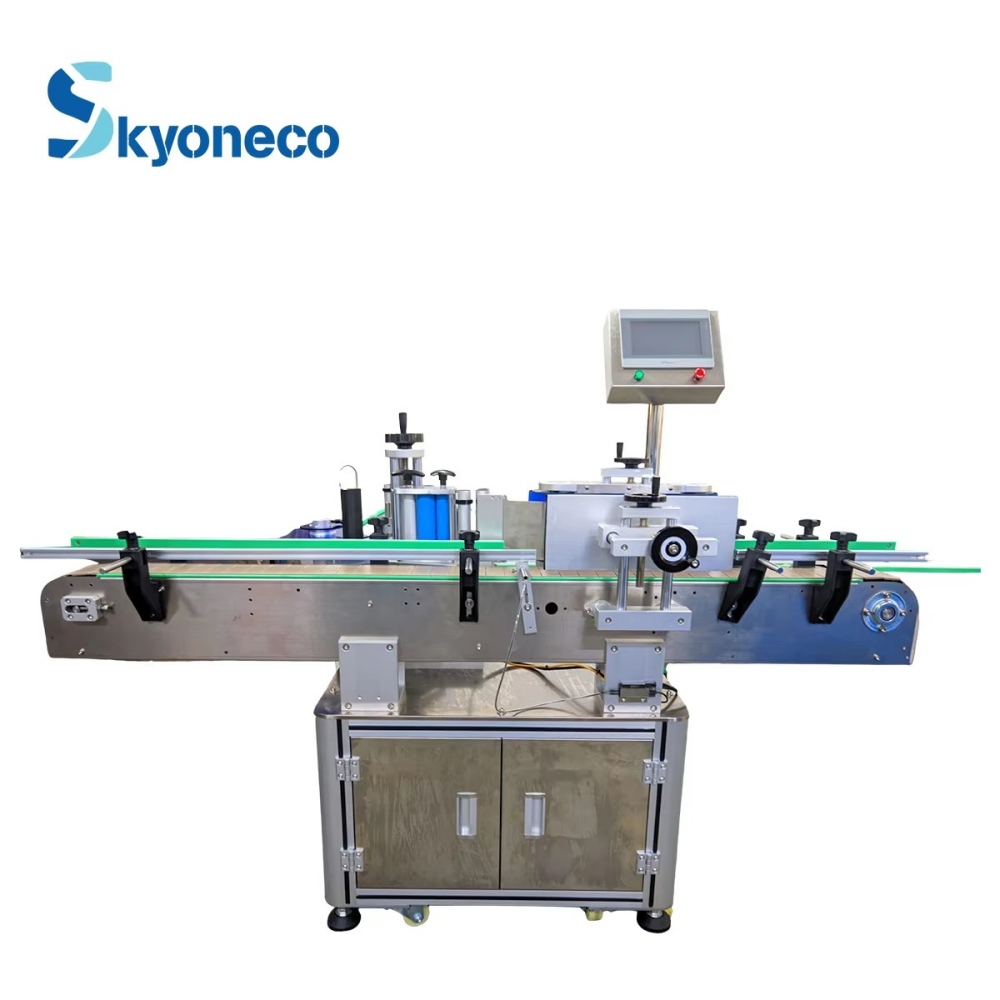

Engineered for high-volume manufacturing environments, the Fully Automatic Round Bottle Rolling Labeling Machine is the definitive solution for high-speed, continuous cylindrical container packaging. Capable of processing between 50 and 200 pieces per minute, this heavy-duty system replaces intermittent positioning stops with a seamless, linear wrap-around rolling motion.

The machine utilizes an automated star-wheel or screw-infeed separator to establish perfect product spacing before feeding containers past a dynamic synchronized rolling belt. This continuous-motion technology ensures flawless, wrinkle-free full-wrap or partial labeling on a wide range of round bottles, jars, and tin cans.

Technical Specifications

Model	SKYONE-0063C
Labeling Accuracy	±1mm
Labeling Speed	50-200 pcs/min
Label Size	L:20-320mm; W:20-100mm
Product Size	Diameter:25-100mm; H:25mm-300mm
Weight	About 185kg
Power	850W

Operation Video

Industry Applications

Food / Beverage / Medicine / Cosmetic / Electronic / Daily / Hardware

This high-speed inline system is designed for straight-walled cylindrical containers across major consumer goods industries:

Beverage & Bottled Water Lines: Perfect for high-speed labeling on PET mineral water bottles, carbonated soft drink containers, energy drinks, and glass beer bottles.
Food Processing & Canning: Optimized for high-throughput glass condiment jars, metal tin cans, automated spice containers, and cylindrical plastic food tubs.
Daily Chemical & Cosmetics: Ideal for processing mass-market shampoo bottles, liquid body wash containers, household hand soaps, and hair-care packaging.
Chemical & Industrial Fluids: Suitable for high-volume runs of household cleaners, agrochemical bottles, and automotive fluid containers with uniform vertical walls.

automatic round bottle rolling labeling machine Application

Core Components Details

round bottle rolling labeling machine Sensor

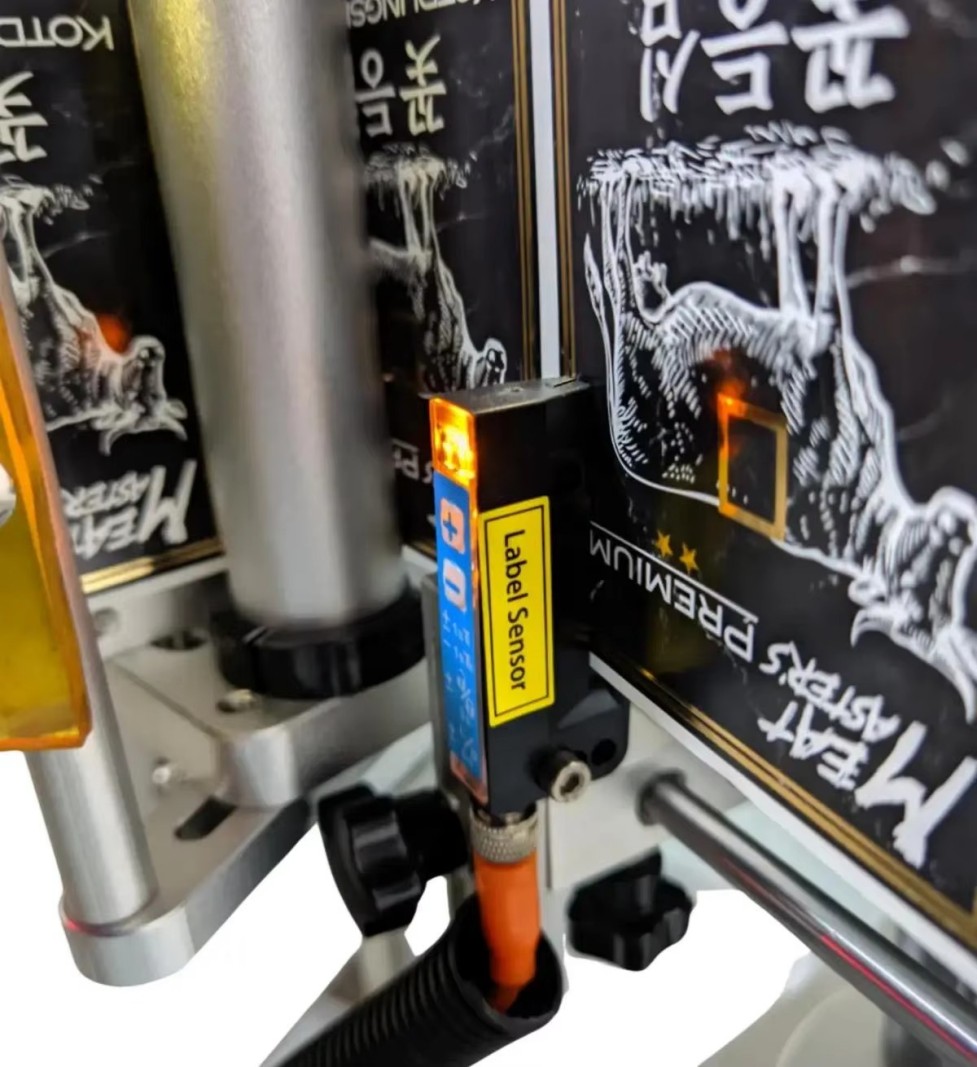

Label Sensor

Outfitted with a premium, high-sensitivity optical slot sensor designed to detect the microscopic gaps between labels on the backing web. This обеспечивает instantaneous millisecond signal feedback to the PLC framework, ensuring exact label dispensing cutoff and preventing double-feeds or web alignment drifting.

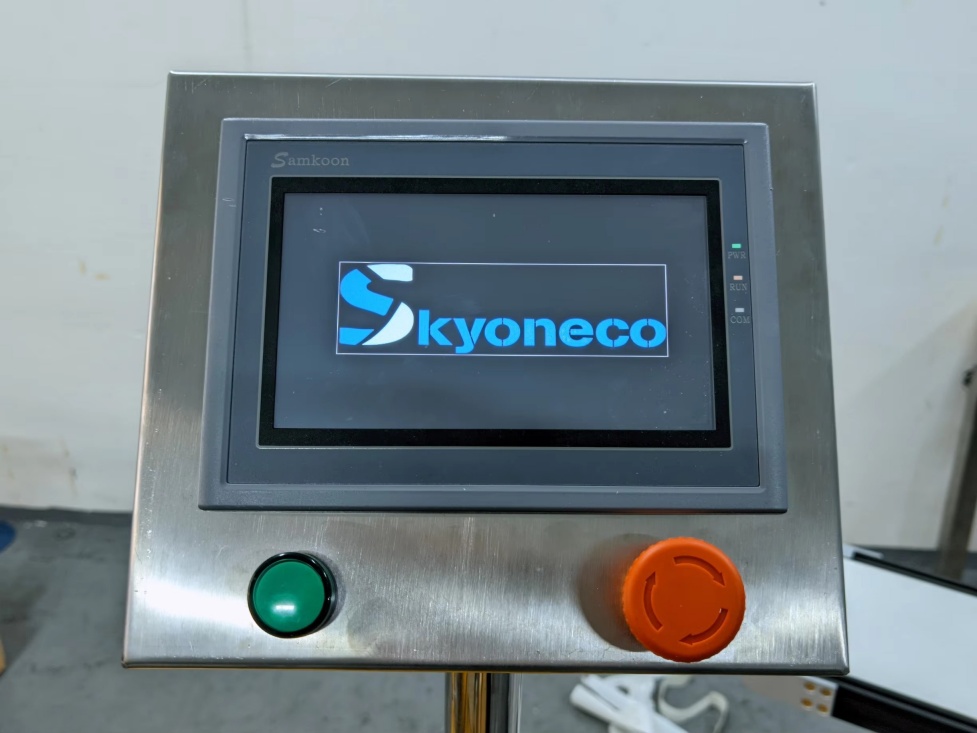

Master HMI Control Panel

An intuitive, industrial-grade HMI panel that gives operators real-time visualization of machine diagnostics, throughput counters, and current operational modes. It supports complex parameters adjustments—such as label dispensing delays and conveyor speed tracking profiles—with a built-in memory recipe system for fast batch recalling.

Fully automatic rolling labeling machine Wheel

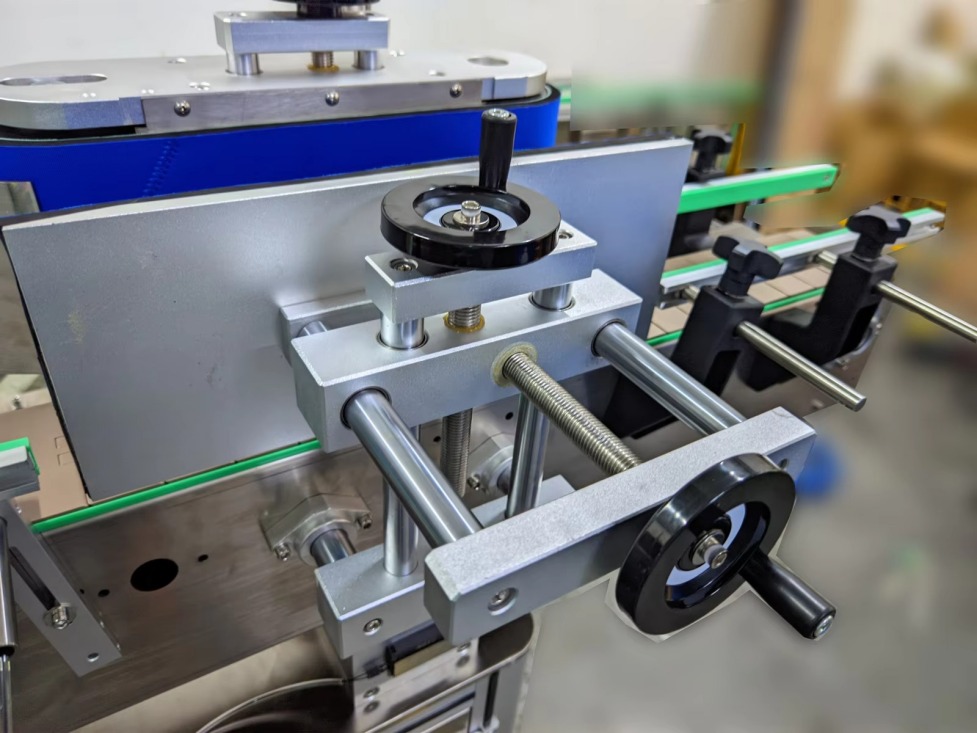

Wheel Adjustment

Features heavy-duty, scale-indicated mechanical hand-wheels along multiple axes. Operators can rapidly fine-tune the vertical clearing height, radial alignment, and depth settings of the labeling head to adapt from slim energy drink cans to wide glass jars in under 5 minutes, achieving a completely toolless product changeover framework.

WHY CHOOSE US

Solution Provider

We will offer professional advice according to customization requirements, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering text communication and video, and on-site guidance in English.

Professional R&D Team

Develop 30 to 50 units each year to meet different customers' need and support OEM order.

One Year Warranty

Within one year, you can replace part if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide service in the future.

More Services

Sticking label service, printing label service, testing sample service and some overseas shipping warehouses.

Labeling Machine FAQ

Q1. What is the maximum throughput speed of this rolling labeler? A: It delivers a high-speed capacity of 50 to 200 pieces per minute, making it perfect for high-volume, continuous production lines.

Q2. How does a rolling labeler differ from a positioning labeling machine? A: A rolling labeler processes bottles via continuous linear motion without stopping them, prioritizing higher throughput velocity, whereas positioning models stop each bottle to achieve sub-millimeter precision.

Q3. How does the machine prevent air bubbles under long wrap-around labels? A: It utilizes a high-friction resilient sponge belt that applies uniform, continuous tangential pressure, expelling all air as the bottle rolls.

Q4. Can this machine handle both glass jars and lightweight PET bottles? A: Yes. The rolling compression module is spring-loaded, applying sufficient pressure to secure labels while remaining gentle enough not to crush thin-walled plastic containers.

Q5. What are the compatible product and label size ranges? A: It accommodates bottle diameters of Φ25mm-100mm, heights of 25–300mm, and label lengths up to 320mm for full-wrap tracking.

Q6. How does the system handle high-density incoming bottle flows without jamming? A: It features an integrated automatic spacing wheel at the infeed, which mechanically isolates each container to establish perfect spacing before labeling.

Q7. How long does it take to switch setups for a different bottle size? A: Less than 5 minutes. Adjustments across all vertical and radial axes are completely toolless, using calibrated universal hand-wheels.

Q8: What safety features are included on the main control console? A: The console is equipped with an oversized industrial Emergency Stop (E-Stop) button that instantly kills all power and pneumatic lines in milliseconds during an emergency.

Q9: Does the touchscreen interface support multiple languages? A: Yes, the centralized PLC HMI software architecture natively supports one-touch switching between English, Spanish, German, French, and Chinese.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
