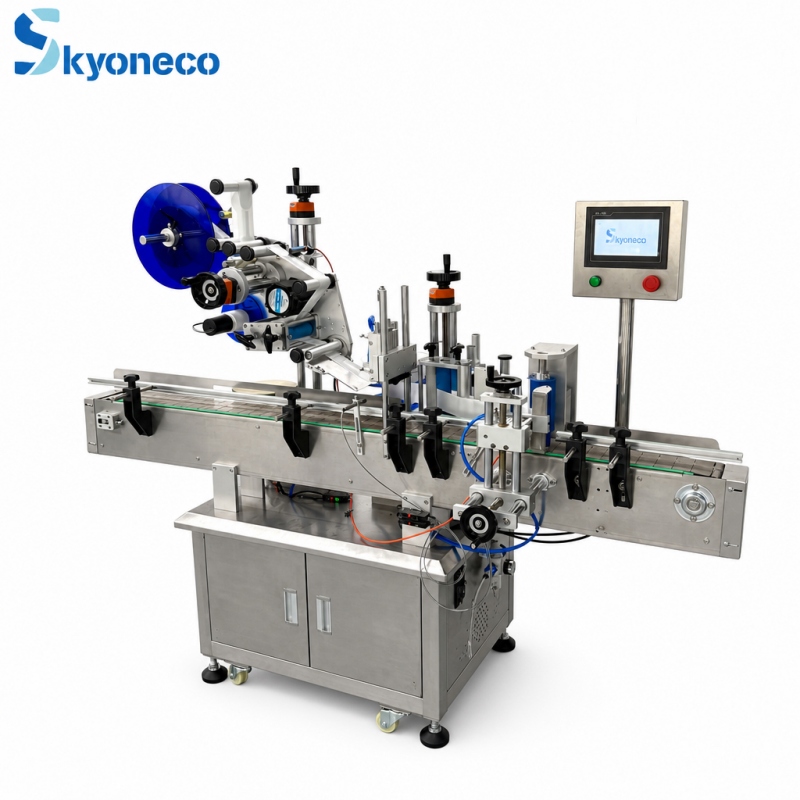

Fully Automatic Positioning Labeling Machine

Intelligent Touch Control Labeling Machine

Automatic Top Corner & Bottle Positioning Labeling Machine

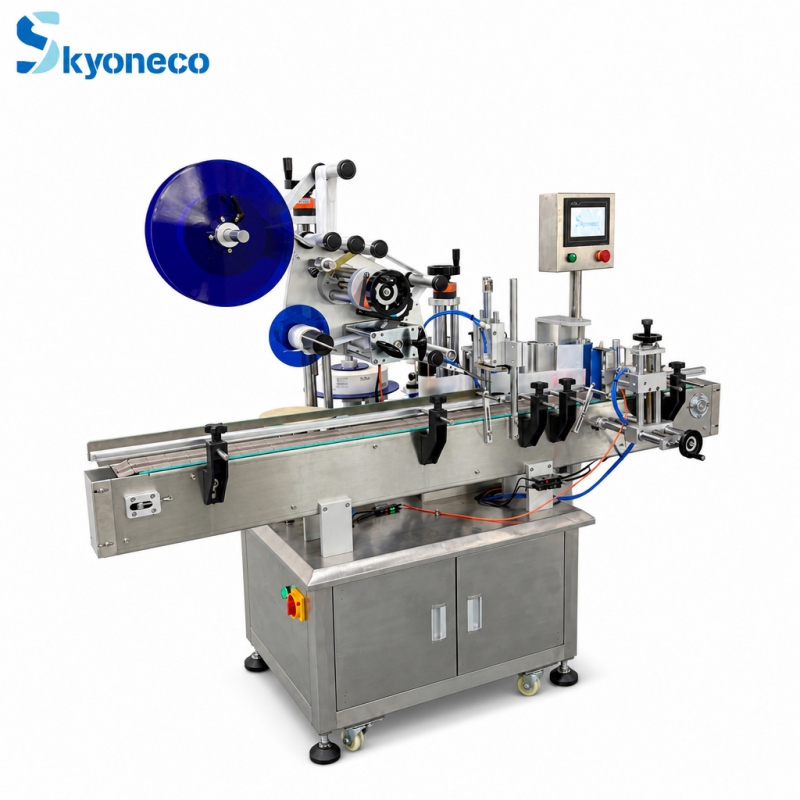

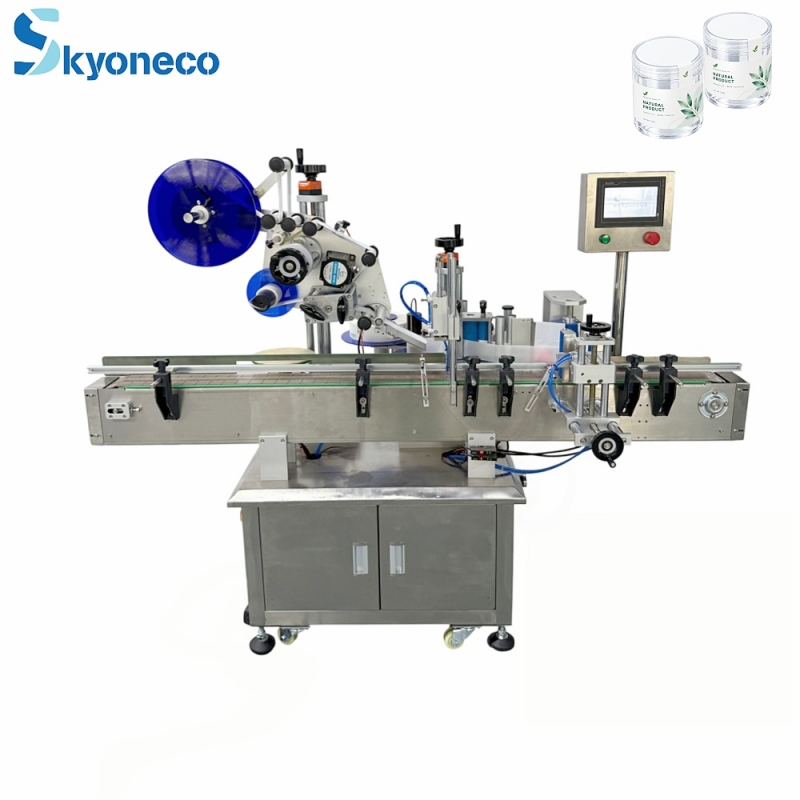

The SKYONE-087-ZJ Automatic Top Corner & Bottle Positioning Labeling Machine For attaching two labels to a round bottle.Including the circular and strip labels on the upper surface, as well as the labels on the bottle body.High labeling accuracy with minimal error. Applied to various round bottlesMulti-functional device, the equipment is made of stainless steel and aluminum, with excellent quality.Applicable to various types such as food, cosmetics, beverages, etc.Outstanding performance, fully automatic intelligent touch control system. Suitable for use in small and medium-sized factories for production.

Item No :
SKYONE-087-ZJ
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
1000W
Weight :
About 200kg
Labeling Accuracy :
±0.5mm
Labeling Speed :
25-40 pcs/min
Label Size :
L:20-285mm; W:20-135mm
Product Size Diameter :
Diameter:25-100mm; H:25mm-300mm

Inquire Now

Product Detailed Information

The SKYONE-087-ZJ Automatic Top Corner & Bottle Positioning Labeling Machine is specially designed to apply labels on the bottle top corner and bottle body at the same time in one pass.Constructed with stainless steel, it meets GMP standards, ideal for cosmetic cream jars, food cans and similar round containers.

It adopts stable servo and PLC control system, with touch screen for easy parameter setup.It can produce 25 to 40 pieces per minute, with label placement accuracy of ±0.5 millimeters.Highly efficient solution to your labeling problems

Technical Specifications

Model	SKYONE-087-ZJ
Labeling Accuracy	±0.5mm
Labeling Speed	25-40 pcs/min
Label Size	L:20-285mm; W:20-135mm
Product Size	Diameter:25-100mm; H:25mm-300mm
Weight	About 200kg
Power	1000W

Operation Video

Industry Applications

✅ Complete two labeling processes (top corner seal label + side bottle label) in a single station

✅ Smooth conveyor and bottle positioning mechanism to ensure precise labeling position

✅ Adjustable labeling speed & position, suitable for various round bottle sizes

✅ Stable label feeding system, low failure rate, easy maintenance

✅ Widely used in cosmetics, food, pharmaceutical and daily chemical industries Automatic labeling machine Application

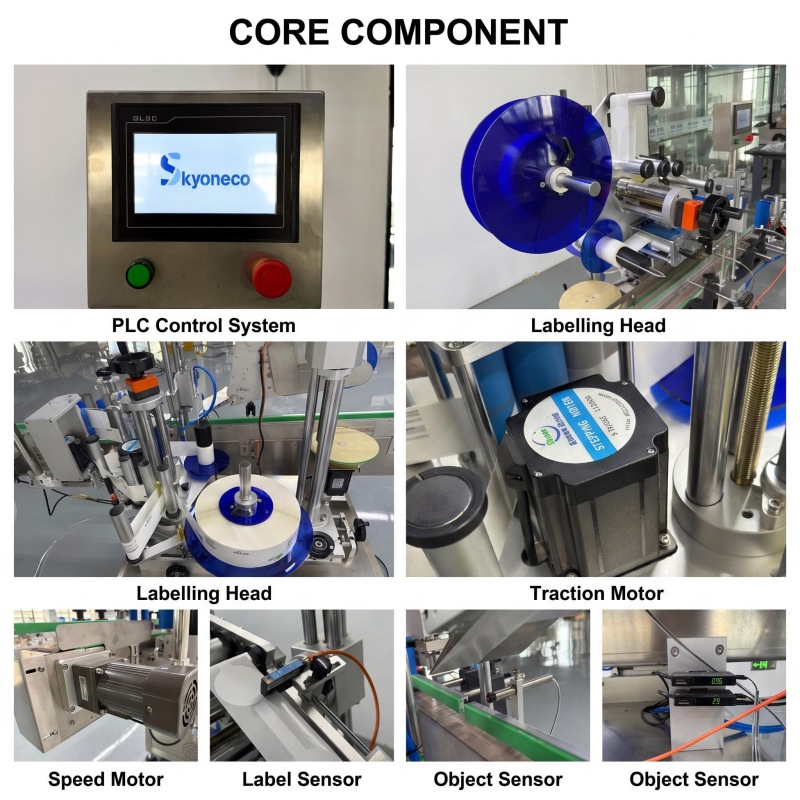

Core Components Details

High-Sensitivity Fiber Sensors

Dual-sensor system (Product & Label) ensures zero labels are wasted. It accurately detects the leading edge of labels, even at top speeds.

Language Switching Function

Equipped with a user-friendly 7-inch touchscreen, the system supports instant switching between Chinese and English, facilitating real-time monitoring and rapid parameter adjustments for operators.

Automatic horizontal labeling machine Handwheels

Adjustment Handwheels

Fitted with high-precision adjustment handwheels, the system supports multi-axis fine-tuning; operators can complete the setup required to switch between products of different diameters in just a few minutes.

WHY CHOOSE US

Solution Provider

We will offer professional advice according to customization requirements, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering text communication and video, and on-site guidance in English.

Professional R&D Team

Develop 30 to 50 units each year to meet different customers' need and support OEM order.

One Year Warranty

Within one year, you can replace part if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide service in the future.

More Services

Sticking label service, printing label service, testing sample service and some overseas shipping warehouses.

Labeling Machine FAQ

Q1. Why choose a horizontal design? A: It’s essential for thin products with a small base. Horizontal conveying prevents falling and ensures a perfectly straight label alignment.

Q2. Will it break fragile glass vials? A: No. The system uses anti-wear, soft-touch materials to ""cradle"" vials, ensuring zero breakage even at 100 pcs/min.

Q3. Can it print batch codes? A: Yes. We can integrate TIJ or TTO printers to print dates and Lot numbers directly onto labels during operation.

Q4. How much maintenance is needed? A: Very little. It uses a brushless motor and stainless steel frame. Just a daily wipe-down of sensors is required to maintain accuracy.

Q5. Can it handle clear labels? A: Yes, by adding an optional ultrasonic sensor upgrade for transparent label detection.

Q6. What is the changeover time for different diameters? A: Typically 15-20 minutes using the handwheel adjustment system.

Q7. Is it compliant with GMP standards?A: Yes, the 304 stainless steel frame and easy-clean surfaces meet pharmaceutical hygiene requirements.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
