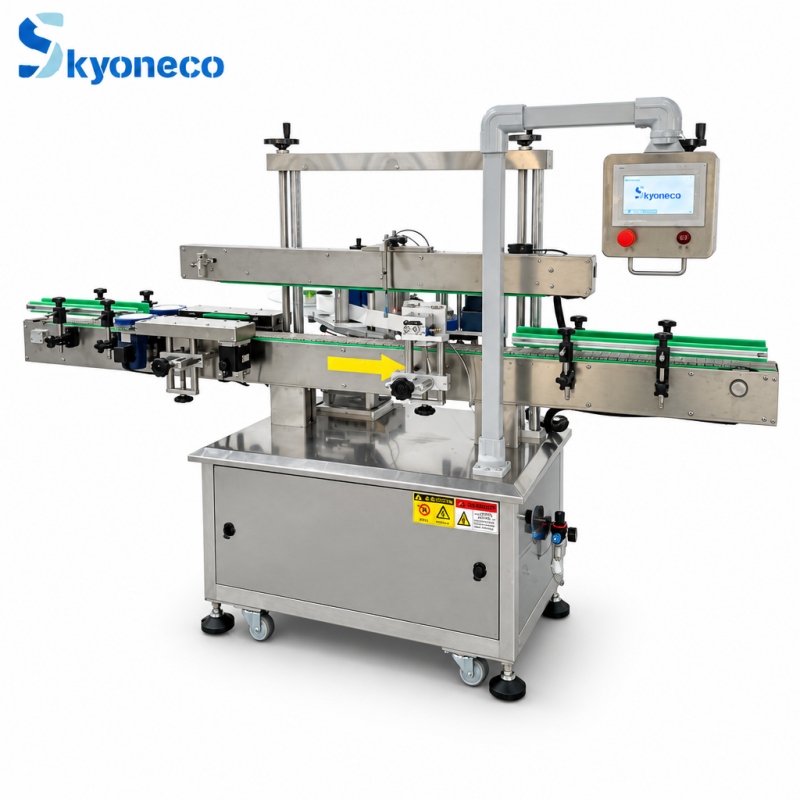

Fully Automatic Positioning Labeling Machine

Fully Automatic Single-Side + Round Bottle Positioning Labeling Machine

Name: Fully Automatic Single-Side + Round Bottle Positioning Labeling Machine
Availability: InStock

The SKYONE-0066C-A Automatic Fully Automatic Single-Side + Round Bottle Positioning Labeling Machine adopts a tool-free modular design. The conveying guide rail, limit blocks, labeling head, and adhesive pressing rollers can all be manually adjusted continuously without disassembling the components. The switching between different bottle types and sizes can be completed within 3 minutes.

Compatibility specifications: Bottle body diameter 30–100mm, bottle height 30–400mm. Label length 10–300mm, width 10–130mm. It covers the vast majority of food, daily chemical, and sauce containers on the market. Whether it's a cylindrical round bottle, or a flat, square, or slightly irregular-shaped bottle, all of them can be used for the production of this machine. It is highly efficient and intelligent, capable of multiple functions in one unit.

Perfectly compatible with various bottle types, enhancing production efficiency

Item No :
SKYONE-0066C-A
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
2500W
Weight :
About 275kg
Labeling Accuracy :
±1mm
Labeling Speed :
30-120 pcs/min
Label Size :
L:10-300mm; W:10-130mm
Product Size Diameter :
Diameter:30-100mm; H:30mm-400mm

Inquire Now

Product Detailed Information

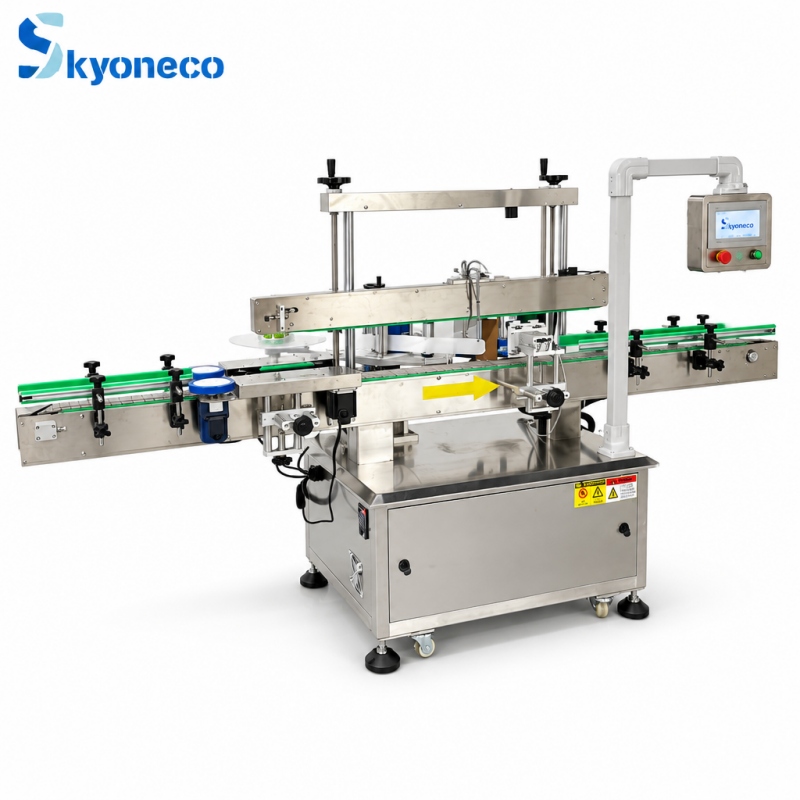

This SKYONE-0066C-A Automatic Fully Automatic Single-Side + Round Bottle Positioning Labeling Machine is suitable for single-side labeling of various bottles, including square bottles, flat bottles, special-shaped bottles and round bottles. It is equipped with the positioning labeling function for round bottles to realize accurate labeling at designated positions on round bottles. The machine frame is made of 304 stainless steel, which meets the hygiene requirements of food, daily chemical, condiment and beverage industries.

Adopted with PLC touch control system and servo motor drive, together with label sensor and object detection sensor, it features stable labeling performance, high accuracy and easy adjustment. The conveyor guide rail can be flexibly adjusted to fit bottles of different sizes quickly without complicated modification when switching products. It is widely used for labeling juice bottles, olive oil bottles, sauce bottles, cold brew coffee bottles and other containers. It can work independently or be connected with filling production lines for inline production.

Technical Specifications

Model	SKYONE-0066C-A
Labeling Accuracy	±1mm
Labeling Speed	20-120 pcs/min
Label Size	L:10-300mm; W:10-130mm
Product Size	Diameter:30-100mm; H:30mm-400mm
Weight	About 275kg
Power	2500W

Operation Video

Industry Applications

Fully automatic operation: continuous infeed, positioning, labeling and discharge to save labor and boost efficiency
Precise positioning: dedicated positioning mechanism delivers stable, consistent label placement — no shifting or wrinkling
Wide adaptability: fits a variety of bottle diameters and heights; quick changeover and easy setup
Sturdy and durable: stainless steel body and food-grade conveyor belt resist wear, are easy to clean and meet hygiene requirements
Simple operation: one-touch parameter setting via touch screen; easy for any operator to learn
Safe and reliable: emergency stop button and safety warning signs ensure production safety

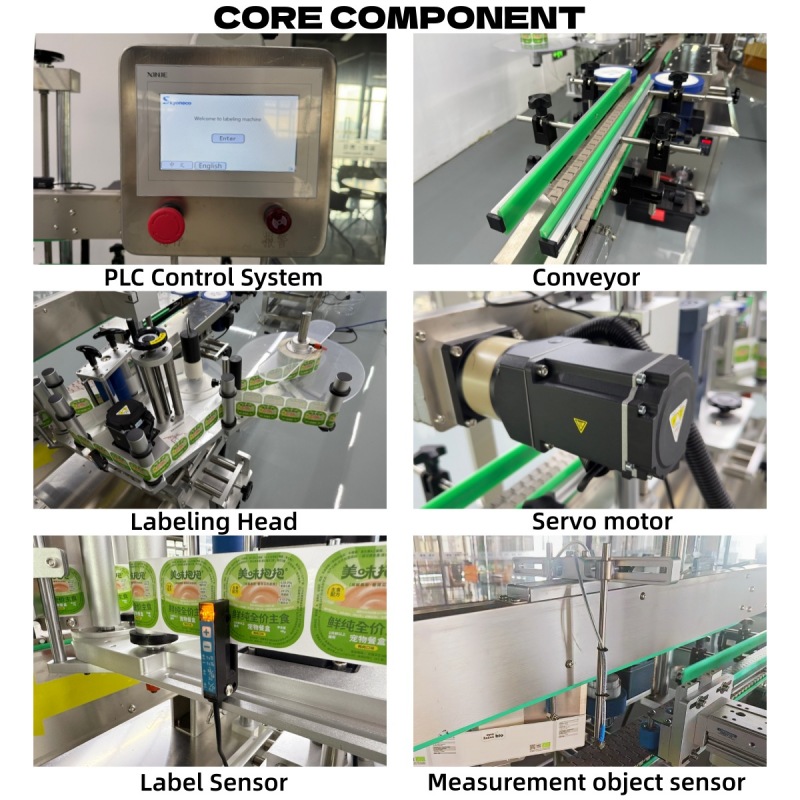

Core Components Details

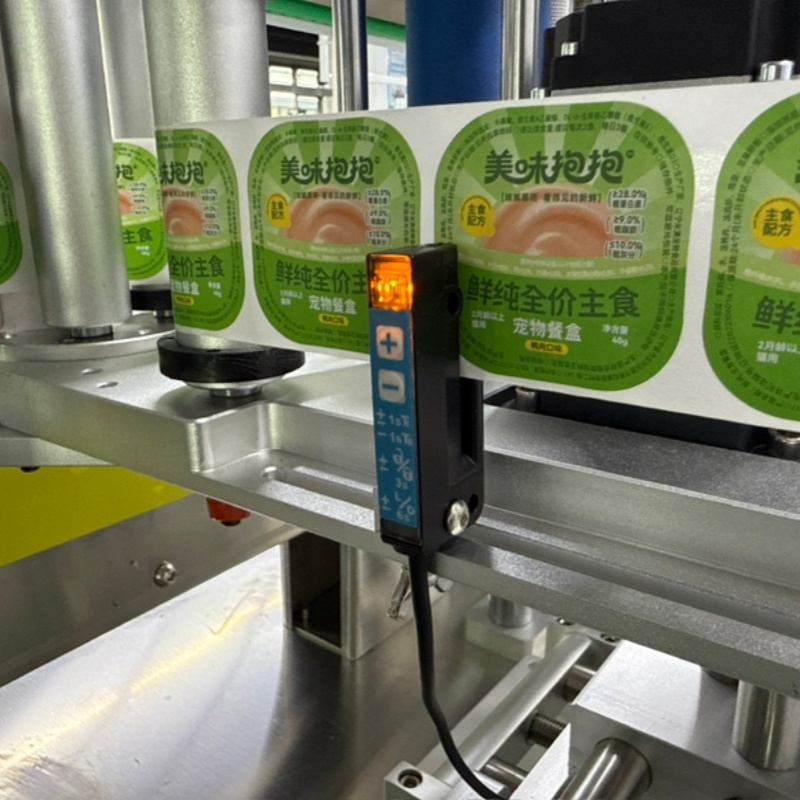

High-Precision Sensor

High-precision detection to avoid errors.Dual-sensor system (Product & Label) ensures zero labels are wasted. It accurately detects the leading edge of labels, even at top speeds.

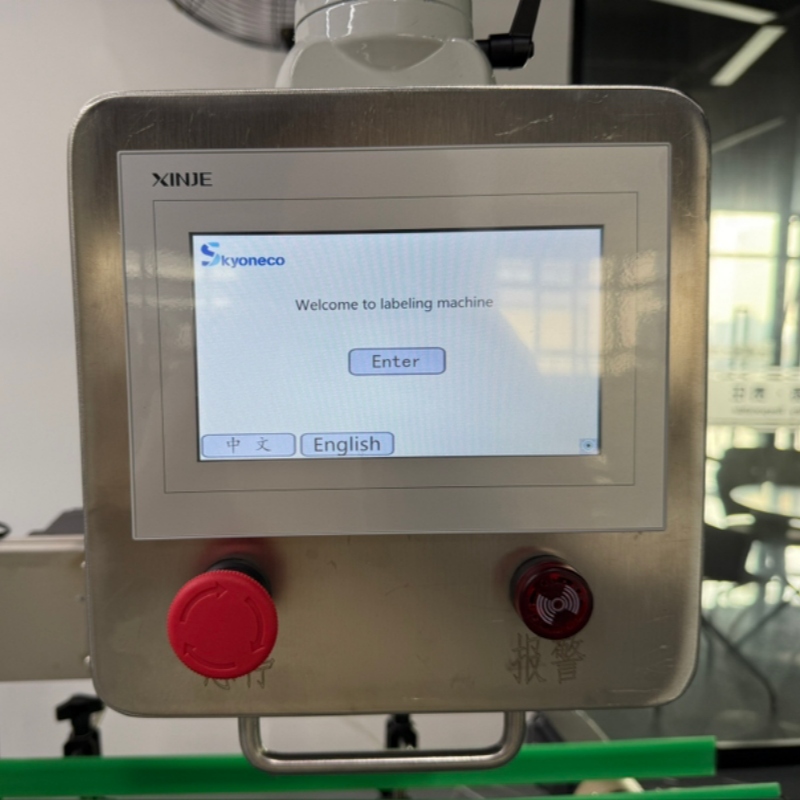

Horizontal Labeling Machine Language Switching Function

Intelligent Touch Screen

Equipped with a user-friendly touchscreen, the system supports instant switching between Chinese and English and multiple languages， facilitating real-time monitoring and rapid parameter adjustments for operators.

Automatic horizontal labeling machine Handwheels

Adjustment Handwheels

Fitted with high-precision adjustment handwheel，easy to operate the system supports multi-axis fine-tuning; operators can complete the setup required to switch between products of different diameters in just a few minutes.

WHY CHOOSE US

Solution Provider

We will offer professional advice according to customization requirements, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering text communication and video, and on-site guidance in English.

Professional R&D Team

Develop 30 to 50 units each year to meet different customers' need and support OEM order.

One Year Warranty

Within one year, you can replace part if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide service in the future.

More Services

Sticking label service, printing label service, testing sample service and some overseas shipping warehouses.

Labeling Machine FAQ

Q1. Why choose a horizontal design? A: It’s essential for thin products with a small base. Horizontal conveying prevents falling and ensures a perfectly straight label alignment.

Q2. Can it adapt to various types of bottles? A: Yes.Supports single-side labeling for round, flat and special-shaped bottles, multi-functional design.

Q3. Can it print batch codes? A: Yes. We can integrate TIJ or TTO printers to print dates and Lot numbers directly onto labels during operation.

Q4. How much maintenance is needed? A: Very little. It uses a brushless motor and stainless steel frame. Just a daily wipe-down of sensors is required to maintain accuracy.

Q5. Can it handle clear labels? A: Yes, by adding an optional ultrasonic sensor upgrade for transparent label detection.

Q6. What is the changeover time for different diameters? A: Typically 15-20 minutes using the handwheel adjustment system.

Q7. Is it compliant with GMP standards?A: Yes, the 304 stainless steel frame and easy-clean surfaces meet pharmaceutical hygiene requirements.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
