Horizontal Round Bottle Labeling Machine

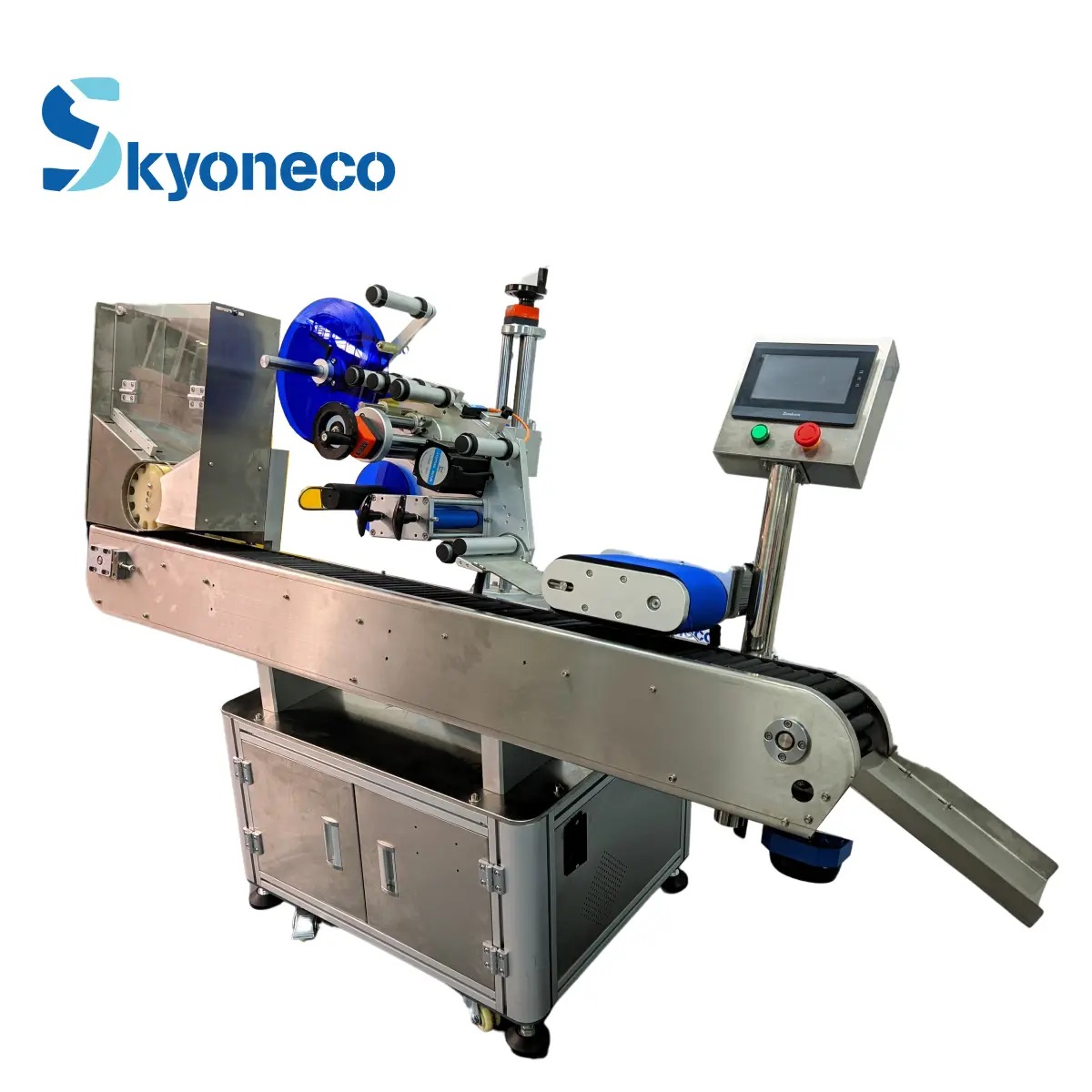

High Speed Auto Horizontal Labeling Machine

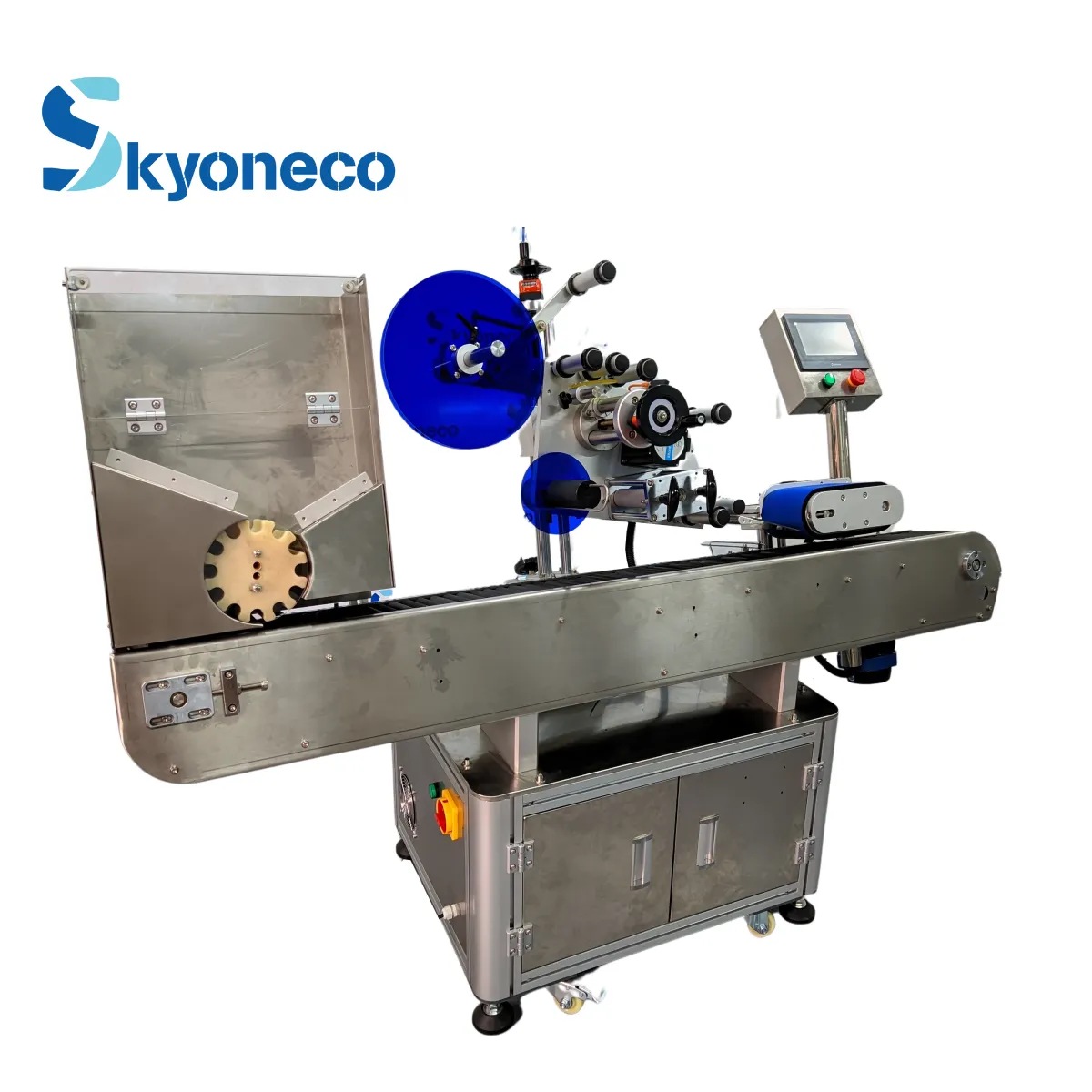

High Speed Automatic Horizontal Round Bottle Labeling Machine

The SKYONE-080WS Horizontal Round Bottle Labeling Machine employs a unique horizontal conveying mechanism to comprehensively resolve the challenges that traditional vertical labeling machines face when handling slender, highly unstable products. It ensures that small-diameter items—such as pharmaceutical vials, pens, lipsticks, and syringes—maintain perfect stability throughout the entire labeling process.
Equipped with an automatic hopper and a specialized star-wheel feeding system, this machine delivers industrial-grade labeling speeds of up to 300 items per minute. Thanks to its precisely controlled labeling head, the device achieves exceptional labeling accuracy of ±1mm, making it an invaluable asset for manufacturers in the pharmaceutical, cosmetics, and stationery sectors, and enabling them to meet rigorous demands for both production efficiency and aesthetic appeal.

Item No :
SKYONE-080WS
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
1000W
Weight :
About 200kg
Labeling Accuracy :
±1mm
Labeling Speed :
50-300 pcs/min
Label Size :
L:10-100mm; W:20-100mm
Product Size Diameter :
Diameter:10-24mm; H:25mm-90mm

Inquire Now

Product Detailed Information

The SKYONE-080WS Horizontal Labeling Machine is engineered for products that cannot stand upright, such as vials, pens, oral liquids, and syringes. By conveying products horizontally, it eliminates tipping and ensures a perfect 360° wrap-around label. With a labeling speed of up to 300 items per minute and an accuracy of ±1mm, it is the professional choice for high-volume packaging production in the pharmaceutical and cosmetics industries.
Horizontal Roller System: Supports slim bottles along their full length to prevent tipping.
Auto Starwheel Feeder: Synchronized feeding for high-speed, jam-free operation.
Medical-Grade Precision: Integrated fiber-optic sensors ensure "No Bottle, No Label" waste.
Easy SKU Changeover: Tool-free handwheel adjustments for different diameters in minutes.

Technical Specifications

Model	SKYONE-080WS
Labeling Accuracy	±1mm
Labeling Speed	50-300 pcs/min
Label Size	L:10-100mm; W:20-100mm
Product Size	Diameter:10-24mm; H:25mm-90mm
Weight	About 200kg
Power	1000W

Operation Video

Industry Applications

This horizontal system is engineered specifically for slim, round products across various sectors:
Medical & Pharma: Ampoules, oral liquid bottles, pre-filled syringes, and blood collection tubes.
Cosmetics: Lipsticks, lip gloss tubes, eyeliner pens, and small essential oil vials.
Stationery: Ballpoint pens, markers, and glue sticks.
Daily Chemical: Small spray bottles and concentrated essence vials.

Automatic horizontal labeling machine Application

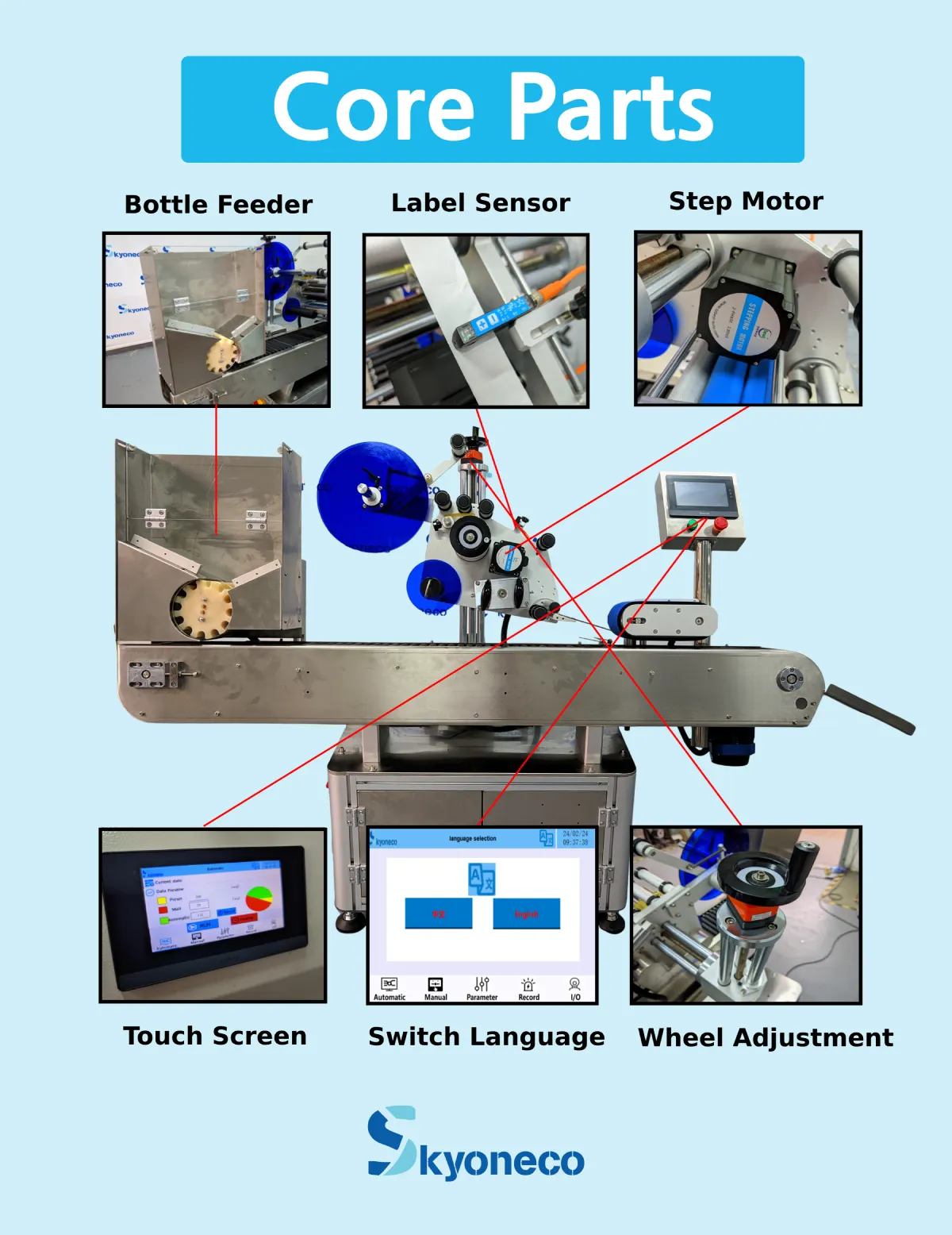

Core Components Details

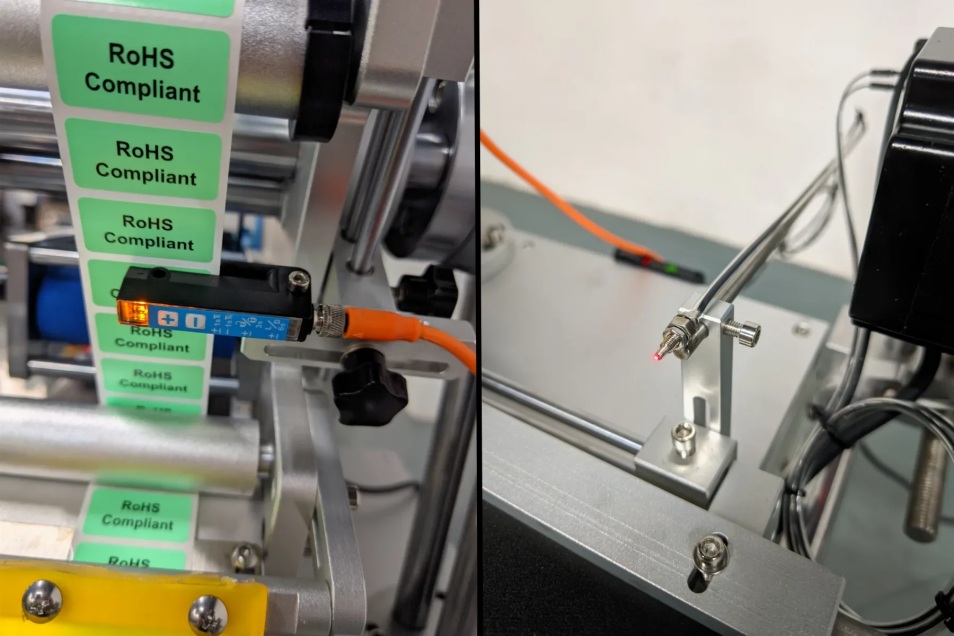

High-Sensitivity Fiber Sensors

Dual-sensor system (Product & Label) ensures zero labels are wasted. It accurately detects the leading edge of labels, even at top speeds.

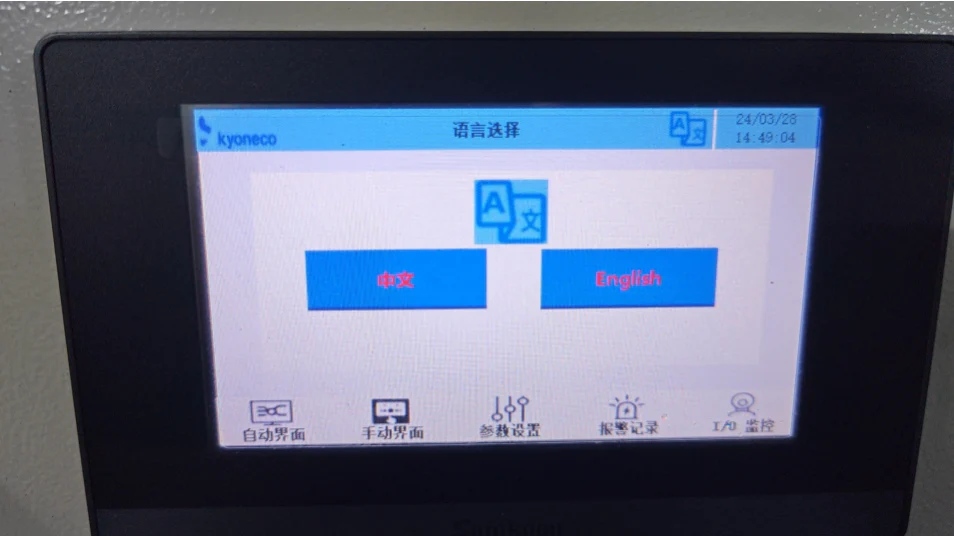

Language Switching Function

Equipped with a user-friendly 7-inch touchscreen, the system supports instant switching between Chinese and English, facilitating real-time monitoring and rapid parameter adjustments for operators.

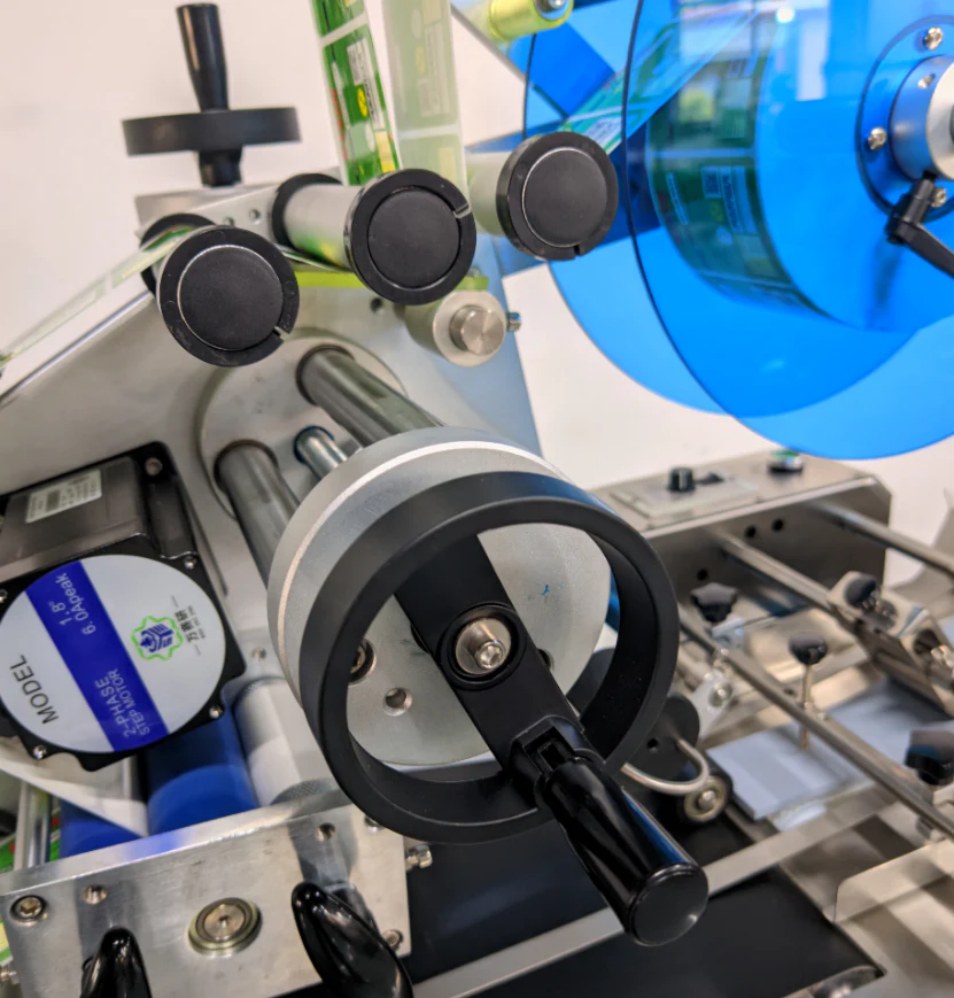

Automatic horizontal labeling machine Handwheels

Adjustment Handwheels

Fitted with high-precision adjustment handwheels, the system supports multi-axis fine-tuning; operators can complete the setup required to switch between products of different diameters in just a few minutes.

WHY CHOOSE US

Solution Provider

We will offer professional advice according to customization requirements, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering text communication and video, and on-site guidance in English.

Professional R&D Team

Develop 30 to 50 units each year to meet different customers' need and support OEM order.

One Year Warranty

Within one year, you can replace part if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide service in the future.

More Services

Sticking label service, printing label service, testing sample service and some overseas shipping warehouses.

Labeling Machine FAQ

Q1. Why choose a horizontal design? A: It’s essential for thin products with a small base. Horizontal conveying prevents falling and ensures a perfectly straight label alignment.

Q2. Will it break fragile glass vials? A: No. The system uses anti-wear, soft-touch materials to ""cradle"" vials, ensuring zero breakage even at 300 pcs/min.

Q3. Can it print batch codes? A: Yes. We can integrate TIJ or TTO printers to print dates and Lot numbers directly onto labels during operation.

Q4. How much maintenance is needed? A: Very little. It uses a brushless motor and stainless steel frame. Just a daily wipe-down of sensors is required to maintain accuracy.

Q5. Can it handle clear labels? A: Yes, by adding an optional ultrasonic sensor upgrade for transparent label detection.

Q6. What is the changeover time for different diameters? A: Typically 15-20 minutes using the handwheel adjustment system.

Q7. Is it compliant with GMP standards?A: Yes, the 304 stainless steel frame and easy-clean surfaces meet pharmaceutical hygiene requirements.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
