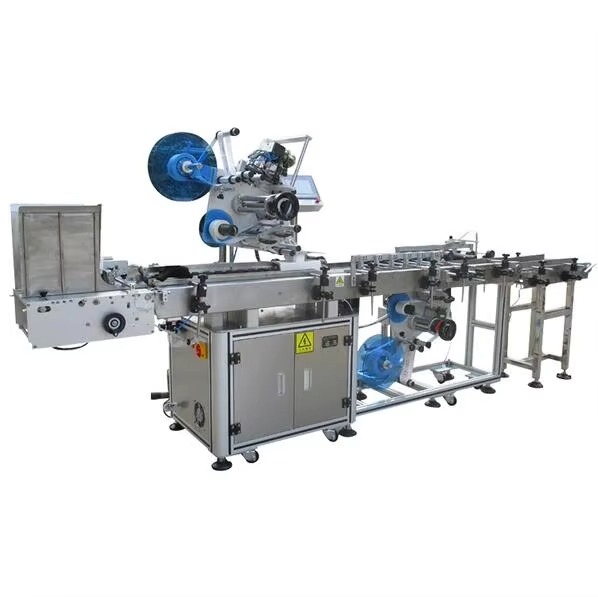

Fully Automatic Flat Labeling Machine With Feeder System

Automatic Flat Surface Labeling Machine With Feeder

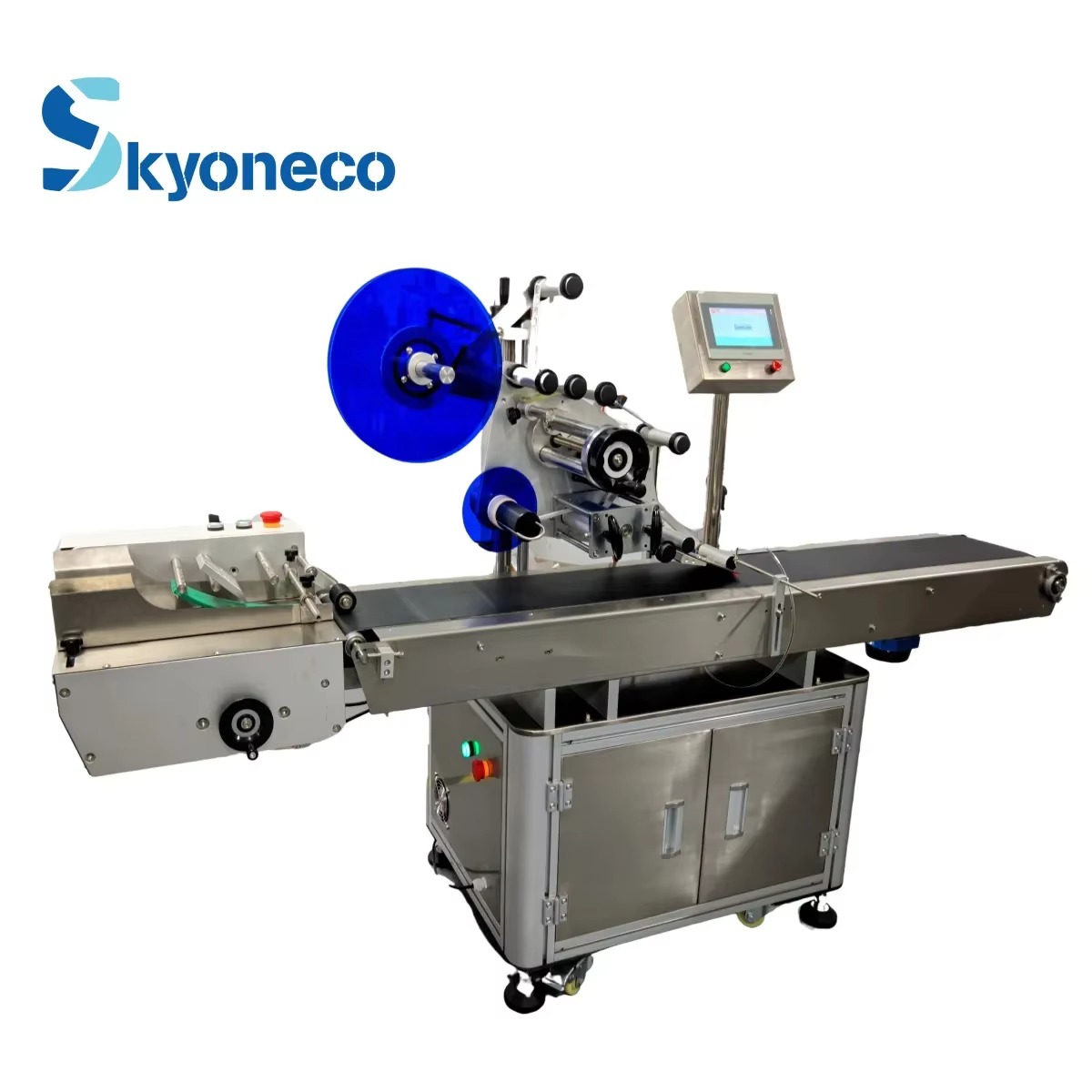

Flat Surface Labeling Machine With Automatic Feed

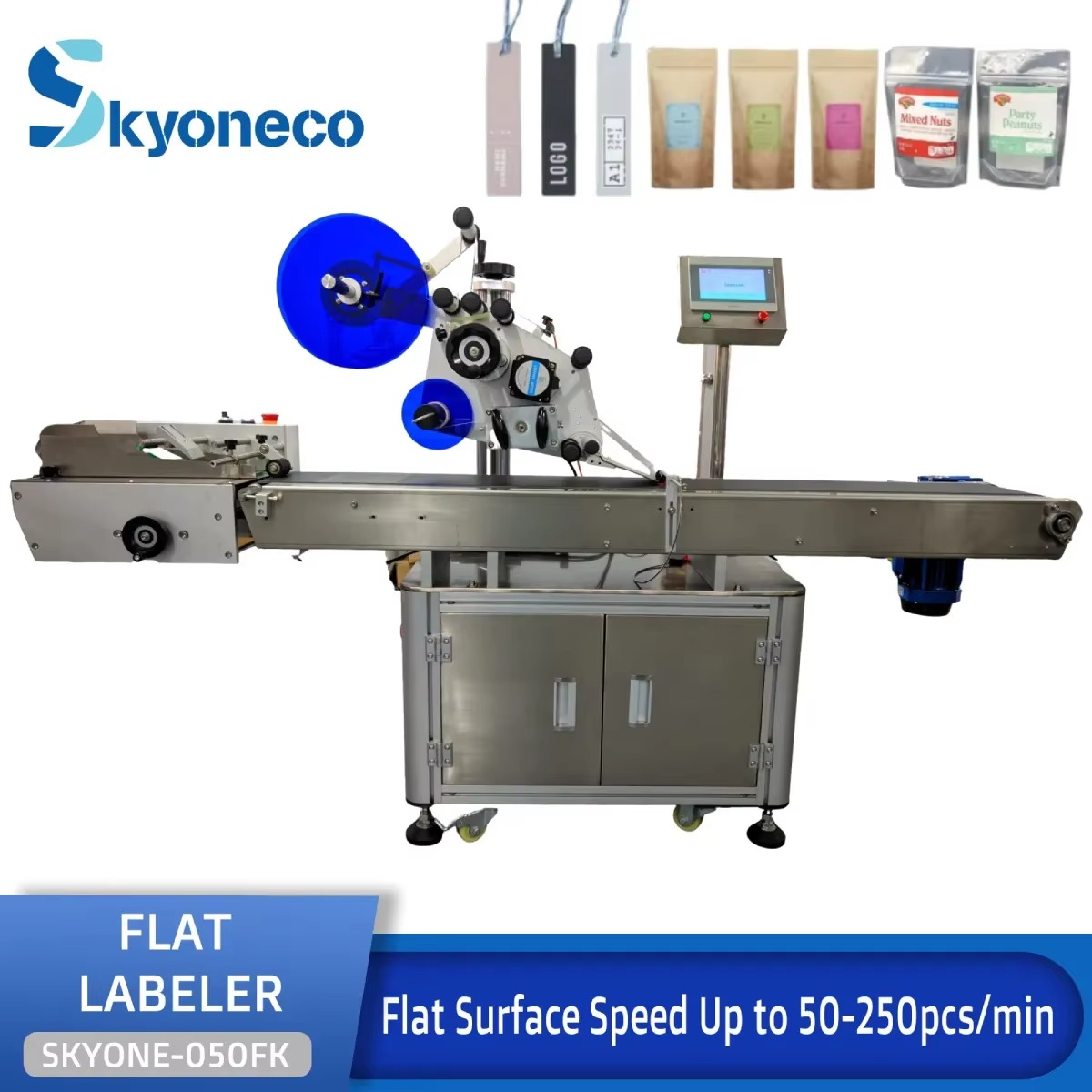

Fully Automatic Labeling Machine for Flat Surface with Feeder SKYONE-050FK

SKYONE-050FK automatic labeling machine for flat surface with page separation device is designed for high-speed and precise labeling of cards, paper sheets, and unfolded cartons. Featuring stable card sorting, intelligent photoelectric tracking, and an advanced control system, it ensures accurate labeling at speeds over 200 pieces per minute while minimizing errors and label waste. With wide application and reliable 24/7 operation, it is ideal for pharmaceutical, packaging, and printing industries.

Item No :
SKYONE-050FK
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
700W
Weight :
About 185kg
Labeling Accuracy :
±1mm

Inquire Now

Product Detailed Information

A highly efficient automatic labeling system specifically developed for flat-surface packaging containers. By combining an automatic sorting and paging mechanism with a smooth inline conveyor, the machine easily automates the process of separate feeding and precise label placement for stacked flat products.

Tailored for Stackable Semi-Rigids: Engineered to feed and label rigid or semi-rigid flat items with ease. It perfectly handles single sheets of paper bags, dense protective PET pouches, plastic cards, clothing hangtags, and bookmarks without running into double-feeding issues.
Anti-Warping Top Stabilizer : Thin sheet substrates often lift or flex when moving at high speeds. This unit integrates an overhead soft-pressure tracking guide that smooths out the material right at the point of labeling, canceling out any structural flex or warp to secure a flawless flush alignment.
Multi-Axis Layout Adaptability : The mechanical winding routing and the labeling head assembly are completely re-imagined for zero-hassle operations. Operators can manipulate the dispensing alignment across 6 separate directional vectors , drastically slicing down setup times during quick product changeovers.
Continuous Heavy-Duty Execution：Utilizing high-torque stepping electronics and synchronous logic gates, the mechanical core is rated to tackle relentless, around-the-clock commercial shifts while holding its extreme precision tolerances intact.

Technical Specifications

Model	SKYONE-050FK
Filling Accuracy	±1mm
Filling Speed	50-200 pcs/min
Label Size	L:10-300mm; W:20-135mm
Product Size	Diameter:40-400mm; W:40-200mm; H:0.2mm-150mm
Machine Weight	About 185kg
Power Consumption	700W

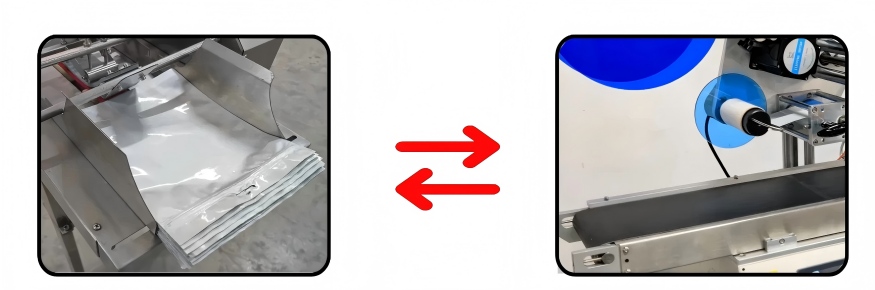

Compare with Flat Labeling Machine (no feeder)

An intuitive comparison demonstrating how the integrated automatic feeder maximizes production efficiency compared to manual placement systems.

With Feeder & Exclusive Customization: Allows users to load 50-100pcs products at one time for efficient, hands-free automated separation and smooth production flow.
No Feeder (Manual System): Standard flat labeling machines without a feeder require workers to put products on the conveyor belt manually one by one, which limits operational speed.

Operation Video

Industry Applications

Tag / Card / Empty Pouch /File Pocket etc

Automatic Flat Labeling Machine Application

Core Components Details

HMI

Featuring an intuitive and user-friendly intelligent HMI, this system simplifies operational control and enhances data tracking accuracy. To accommodate global users, it supports multiple language options including English, Spanish, German, and French.

Page Separation Device

The SKYONE-050FK integrates a dedicated right-side feeder designed specifically for handling flat items such as cards, bags, and tags. Depending on the material thickness, users can batch-load 50 to 100 products simultaneously. Its high efficiency in separating items piece-by-piece prevents double-feeding, ensuring a seamless and high-accuracy labeling process.

Wheel Adjustment

Position adjustment of the labeling blade is managed through a manual wheel mechanism. This precise regulation directly optimizes the overall labeling quality and guarantees consistent placement accuracy.

Optical Sensor

To achieve reliable high-precision placement, the SKYONE-050FK utilizes an advanced optical sensing system to track products as they move along the conveyor belt. The setup incorporates two separate sensors one dedicated to product detection and the other to label monitoring allowing the machine to dispense labels and process items sequentially one by one upon detection.

Our Customers

Global Footprint: High-quality machines exported globally with a consistent volume of 100+ units per month.
Widespread Trust: Successfully established an active and growing customer base spanning across over 90 countries.
Proven Service & R&D: Backed by a dedicated support system and a reliable engineering team, achieving an outstanding customer reorder rate of exceeding 98%.

Why Choose Us

Customized Solutions

From specialized nozzle designs for anti-foaming to custom conveyor lengths, we tailor every machine to your specific material viscosity.

Material Experts

Our engineers have over 20 years of experience in fluid dynamics, helping you solve filling challenges for honey, sauce, creams, and oils.

Advanced R&D

We develop 30 to 50 new filling units annually, integrating the latest servo technology to meet evolving industry standards.

One Year Warranty

Total peace of mind with a comprehensive 12-month warranty on all core components, including the rotor pump and servo system.

Lifetime Support

Our global service team provides technical consultation and maintenance advice throughout the entire lifecycle of your machine.

Turnkey Integration

Complete production line services including upstream mixing tanks and downstream capping and labeling machine integration.

Desktop Automatic Flat Labeling Machine FAQ

Q1. How much is the automatic labeing machine? A: Please send me your product pictures and label size,then we can check the best price for you.

Q2. Does the machine HMI in English? A: Yes,our labeling machine HMI is in English, we also provide other language like Spanish,Germany,French,Russian and Korean etc.

Q3. Is it easy to set up? A: Yes,the design of labeling machine is very human.After receiving labeling machine,no need to assemble,just power on,then install label rolls, and do some simple setting, then you can run it.

Q4. How many products can be hold with feeder? A: Usually,you can put your products into the feeder is about 100-200pcs,it will depends on your product thickness.

Reliability is our priority. Every SKYONE series filling machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
