High-speed Desktop Automatic Bottle Labeling Machine with Inkjet Printer

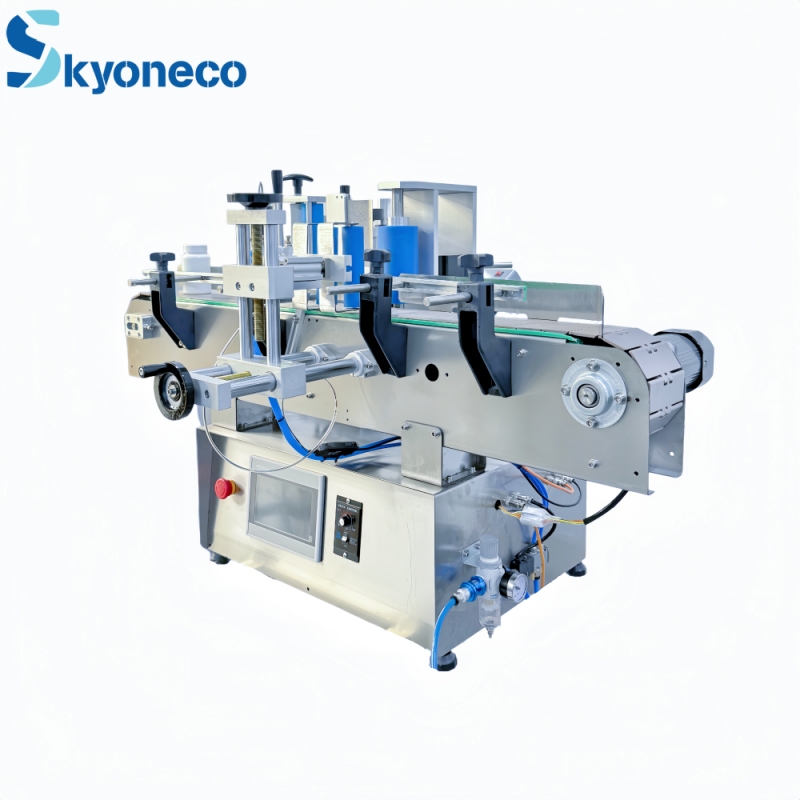

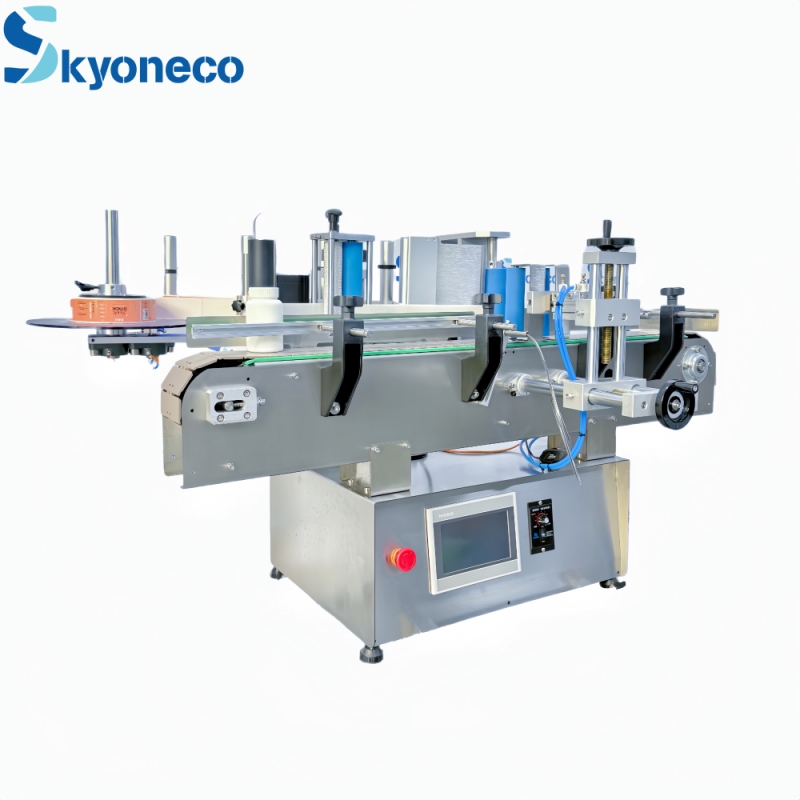

The Desktop Vertical Round Bottle Positioning and Labeling Machine delivers industrial-grade, sub-millimeter labeling precision within a space-saving, benchtop configuration, Utilizing an advanced vertical rotary positioning mechanism, the machine achieves a remarkable accuracy profile of ±0.5mm. Specifically engineered for small-to-medium production facilities and automated laboratory lines, this compact system eliminates the need for bulky floor-standing equipment without sacrificing accuracy.

Item No :
SKYONE-880ZD-PM
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
600W
Weight :
About 150kg
Labeling Accuracy :
±1mm
Labeling Speed :
25-35 pcs/min
Label Size :
L:25-285mm; W:25-135mm
Product Size Diameter :
Diameter:25-100mm; H:25mm-300mm

Inquire Now

Product Detailed Information

This desktop round bottle positioning and labeling machine is designed for benchtop environments, but its conveyor and control module feature responsive speed matching logic. As your small brewery or packing plant expands, you can easily connect it to small automated benchtop capping or filling systems.

Advanced Registration Positioning: This system is not just for random labeling. It can be optionally configured with positioning sensors to detect specific molding lines, glass handles, or pre-printed markings on your beer or wine bottles, ensuring the label is applied in perfect harmony with the container’s design.

Equipped with an advanced inkjet printing system and intelligent control technology, this high-speed desktop automatic flat labeling machine ensures precise label placement and clear code printing at high production speeds. Its compact desktop design saves workspace while supporting stable and continuous operation, making it an ideal solution for small and medium-sized packaging lines

Technical Specifications

Model	SKYONE-880ZD-PM
Labeling Accuracy	±1mm
Labeling Speed	25-35 pcs/min
Label Size	L:25-285mm; W:25-135mm
Product Size	Diameter:Diameter:25-100mm; H:25mm-300mm
Inkjet Size	1-12mm/1-24mm；L:1-300mm
Weight	About 150kg
Power	600W

Operation Video

Industry Applications

Food / Beverage / Medicine / Cosmetic / Electronic / Daily / Hardware

Beverage & Spring Water Bottling: Ideal for applying full-wrap labels onto standard PET mineral water bottles, carbonated soft drink cans, and glass juice containers.
Dairy & Milk Processing: Optimized for cylindrical HDPE or glass milk bottles, yogurt jars, and dairy beverage packaging requiring precise positioning.
Wineries & Craft Breweries: Perfect for small-to-medium batches of craft beer glass bottles, vertical wine bottles, and spirits containers where premium aesthetic alignment is mandatory.
Daily Chemical & Household Care: Widely utilized for cylindrical cosmetic pumps, shampoo bottles, body lotions, and household cleaner containers with straight vertical profiles.

Desktop Automatic Card Labeling Machine Application

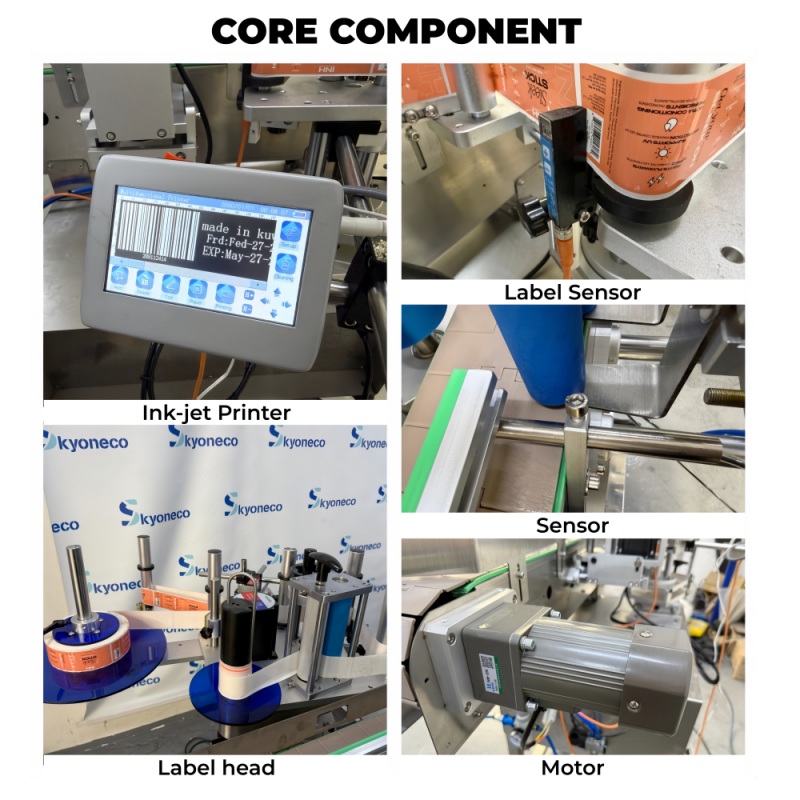

Core Components Details

Industrial Optical Object Sensors

Outfitted with high-sensitivity registration sensors that detect the structural presence of glass, PET, and metal containers without physical contact, preventing misfeeds or wasted labels.

Dual-Axis Positioning Hand-Wheels

The core mechanism that enables ±0.5mm accuracy. It clamps the round bottle securely along its vertical axis, rotating it dynamically against the dispensing edge to ensure perfect end-to-end label overlap.

Conveyor Drive Motor

The motor is linked to the frequency converter/PLC of the main control system, ensuring millisecond-level precise synchronization between the conveyor belt speed and the label dispensing speed of the labeling head. This is the fundamental basis for ensuring that the bottles will not tip over and the labels will not shift during movement.

High-Precision Positioning and Labeling Machine

3-Roller Orientation Positioning Station

The engineering core of our ±0.5mm accuracy. Once a container enters the labeling zone, three high-elasticity silicone rollers clamp it into a rigid vertical alignment axis. As the bottle rotates dynamically within this three-point grid, the label is pressed from the center outward, eliminating air bubbles, preventing skewing, and ensuring seamless end-to-end seam registration.

WHY CHOOSE US

Solution Provider

We will offer professional advice according to customization requirements, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering text communication and video, and on-site guidance in English.

Professional R&D Team

Develop 30 to 50 units each year to meet different customers' need and support OEM order.

One Year Warranty

Within one year, you can replace part if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide service in the future.

More Services

Sticking label service, printing label service, testing sample service and some overseas shipping warehouses.

Labeling Machine FAQ

Q1. What production speed can this desktop model achieve? A: It delivers a stable throughput of 25 to 35 pieces per minute, depending on the container diameter and label length.

Q2. What is the defining benefit of the ""Positioning"" feature? A: It physically locks the bottle to ensure an ultra-high alignment accuracy of ±0.5mm, allowing for perfect end-to-end label overlap and zero skewing.

Q3. Can it apply both front and back labels from a single roll? A: Yes. You can program the machine via the touchscreen to dispense two labels per cycle and easily adjust the spacing distance between them.

Q4. Can this machine label tapered or neck-curved glass bottles? A: No, this system is strictly optimized for straight, vertical cylindrical surfaces like standard beer, wine, and mineral water bottles.

Q5. What are the maximum and minimum bottle sizes it accommodates? A: It handles bottle diameters from Φ25mm to Φ100mm and container heights from 25mm up to 300mm.

Q6. How long does a standard product size changeover take? A: Approximately 5 to 10 minutes. All adjustments are done via calibrated manual hand-wheels without requiring specialized tools.

Q7. Does the machine require an external air compressor to operate? A: No. Unlike larger pneumatic models, this desktop unit operates on an all-electric design, requiring only a standard electrical outlet.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
