Automatic Labeling Machine for Recycled Paper Trays

Fully automatic factory customized egg tray labeling machine

SKYONE-030PM-F-S is a professional-level fully automatic flat label application system, specially designed for egg tray labeling. Its modular design enables seamless integration into various production lines. This machine features a sturdy industrial-grade frame and a high-torque power system, effectively eliminating common problems such as label wrinkling or misalignment.

Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
1500W
Weight :
About 500kg
Labeling Accuracy :
±1mm
Labeling Speed :
35-60 pcs/min
Label Size :
L:20-320mm; W:20-100mm
Product Size Diameter :
Customized according to actual requirements

Inquire Now

Product Detailed Information

SKYONE-030PM-F-S is a high-performance fully automatic flat surface labeling machine specifically customized for the poultry packaging industry. It is the ideal solution for applying labels to egg trays, cartons, and flat-top containers made of pulp or plastic. Engineered to handle the unique textures of egg packaging, this system ensures a smooth, wrinkle-free finish with an industrial precision of ±1mm, significantly boosting your production efficiency.

Optimized for Egg Trays: Specifically designed to handle pulp-molded surfaces, ensuring labels adhere firmly even on slightly irregular flat surfaces.
High-Speed Output: Capable of labeling 35-60 pieces per minute, meeting the demands of large-scale poultry processing and packaging facilities.
Heavy-Duty Stability: Featuring a massive 500kg industrial frame, it provides the necessary weight to eliminate mechanical resonance, ensuring consistent labeling at peak speeds.

Technical Specifications

Model	SKYONE-030PM-F-S
Labeling Accuracy	±1 mm
Labeling Speed	35 - 60 pcs/min
Label Size (Range)	L: 20-320mm; W: 20-100mm
Product Size	Customized to Actual Needs
Machine Weight	About 500kg
Power Consumption	1500W

Operation Video

Core Components Details

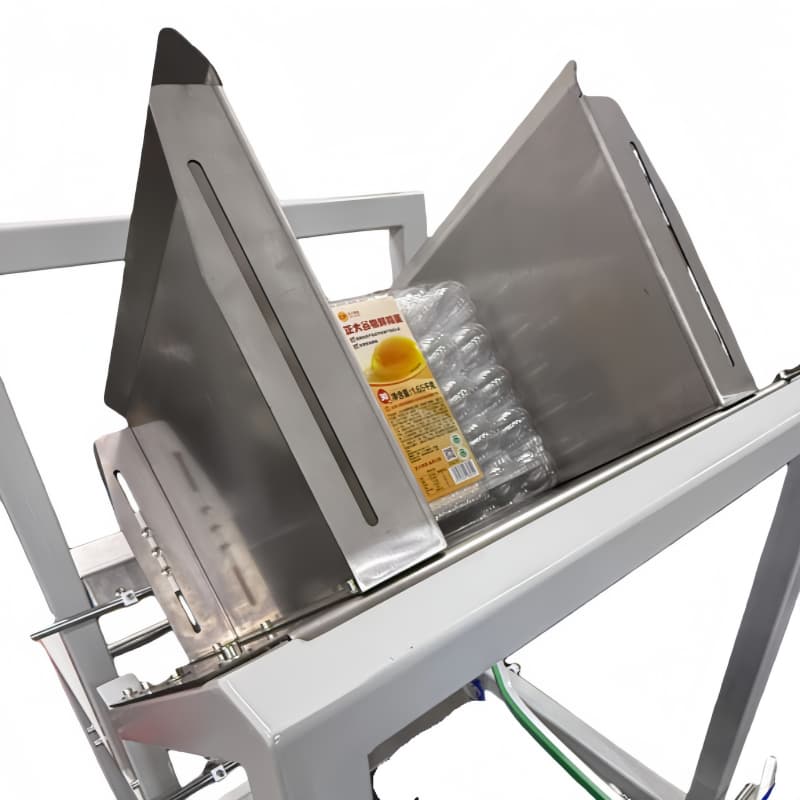

Heavy-Duty Labeling Machine Construction

Automatic Distribution

Automatically arrange the stacked eggs neatly and send them into the conveyor line.

Intelligent Touchscreen Control for Labeling

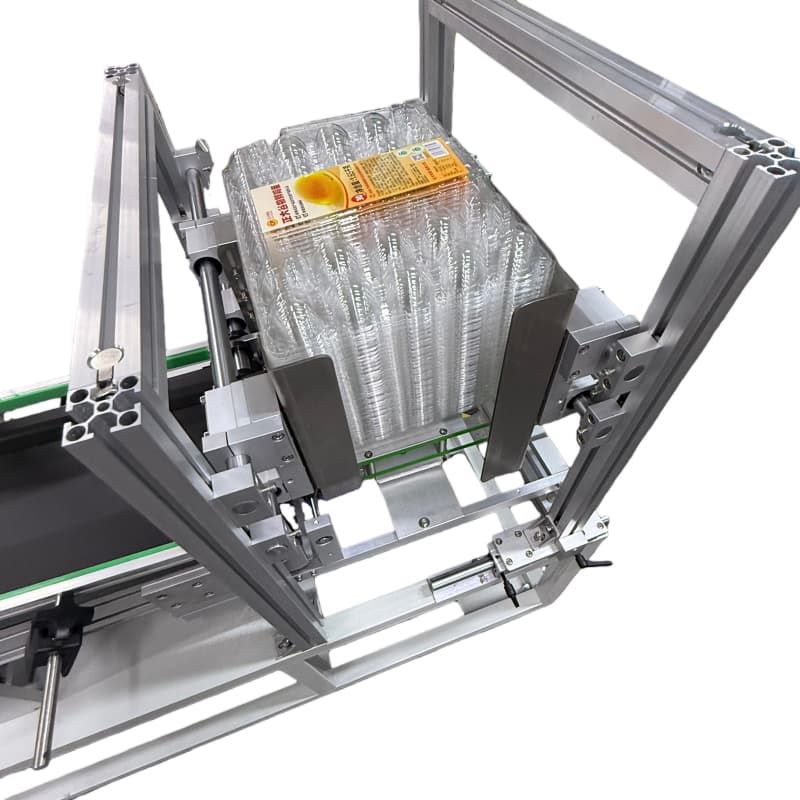

Automatic Collection

The entire process from raw material supply to finished product has been fully automated, significantly reducing the need for human intervention.

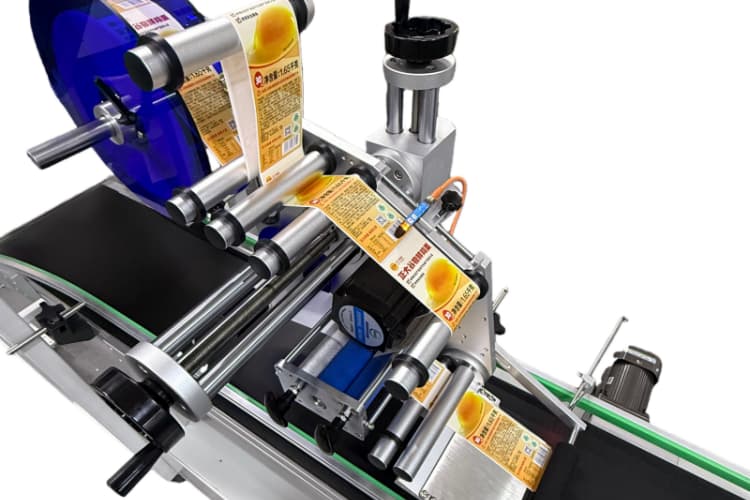

Labeling Head

The label header part is designed customarily to ensure that the label does not shift during peeling and sticking. Combined with imported photoelectric sensors, it achieves a high-precision labeling of ±1.0mm.

HML

Equipped with intelligent HMI. It is easy to operate. There are different kinds of languages such as English, Spanish, Germany and French. To help control the working data easier and more accurately.

Optical Sensor

The machine use the advanced optical sensor to detect products when the conveyor belt is moving. It will ensures the accuracy of

labeling.There are two optical sensor, one is for the product, another is for the label. It will release the label and product one by one when

the sensor detect it.

Stainless Steel

Skyone machines are made of stainless steel, which is waterproof, corrosion-resistant, high-temperature resistant, wear-resistant

and eco-friendly material. It is very east to clean. It will protect the machine effectively.

Why Choose Us

Customized Solutions

We customize the machine structure based on your specific egg tray samples to ensure 100% compatibility before shipment.

Expert Engineering

Our team has decades of experience in flat surface labeling, offering specialized advice for difficult-to-stick materials like recycled pulp.

Global R&D Standards

We continuously update our technology to integrate with the latest eco-friendly packaging materials, ensuring your machine stays future-proof.

Quality Assurance

Every machine comes with a comprehensive one-year warranty on core components and rigorous pre-shipment testing.

After-Sales Support

We provide lifetime technical support and spare parts availability to keep your production line running smoothly 24/7.

Turnkey Service

From label design consulting to sample testing and global logistics, we handle the technical details so you can focus on your business.

Labeling Machine FAQ

Q1. Can this machine handle both paper pulp and plastic egg trays? A: Yes, the SKYONE-030PM-F-S is designed with a specialized pressure brush system that accommodates the different surface textures of both paper and plastic materials.

Q2. Is it difficult to adjust the machine for a 6-egg vs. a 30-egg tray? A: Not at all. The multi-axis handwheels allow for quick vertical and horizontal adjustments, making the changeover process fast and tool-free.

Q3. What happens if the labels are long, like 300mm? A: This model supports labels up to 320mm in length. The 1500W high-power motor ensures the labels are dispensed smoothly without tension-related alignment issues.

Q4. Does the machine require professional installation? A: The machine is shipped nearly fully assembled. We provide detailed video tutorials and remote engineering support to help you get started in hours.

Your production stability is our priority. Every SKYONE series machine undergoes a rigorous 72-hour stress test before leaving our facility.
