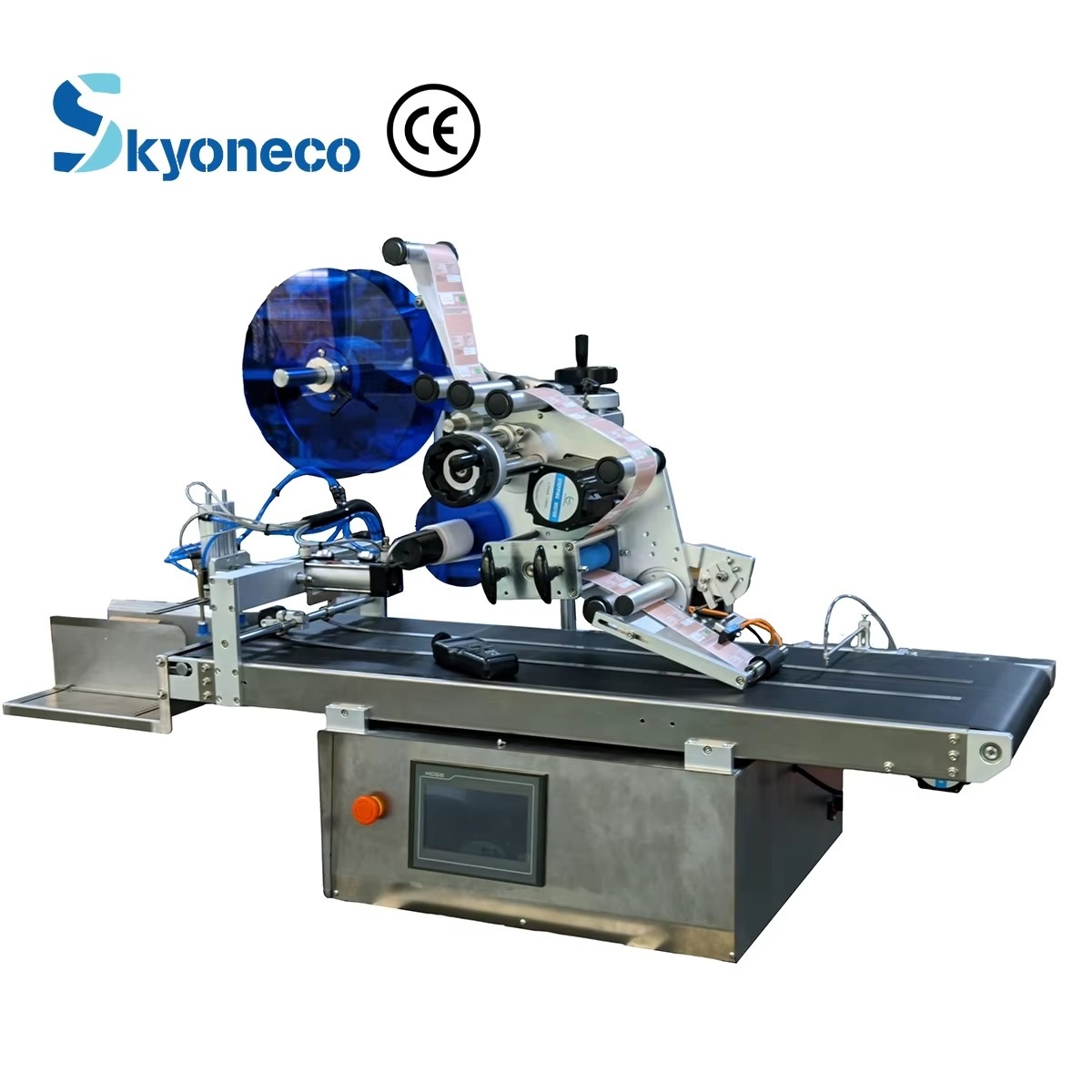

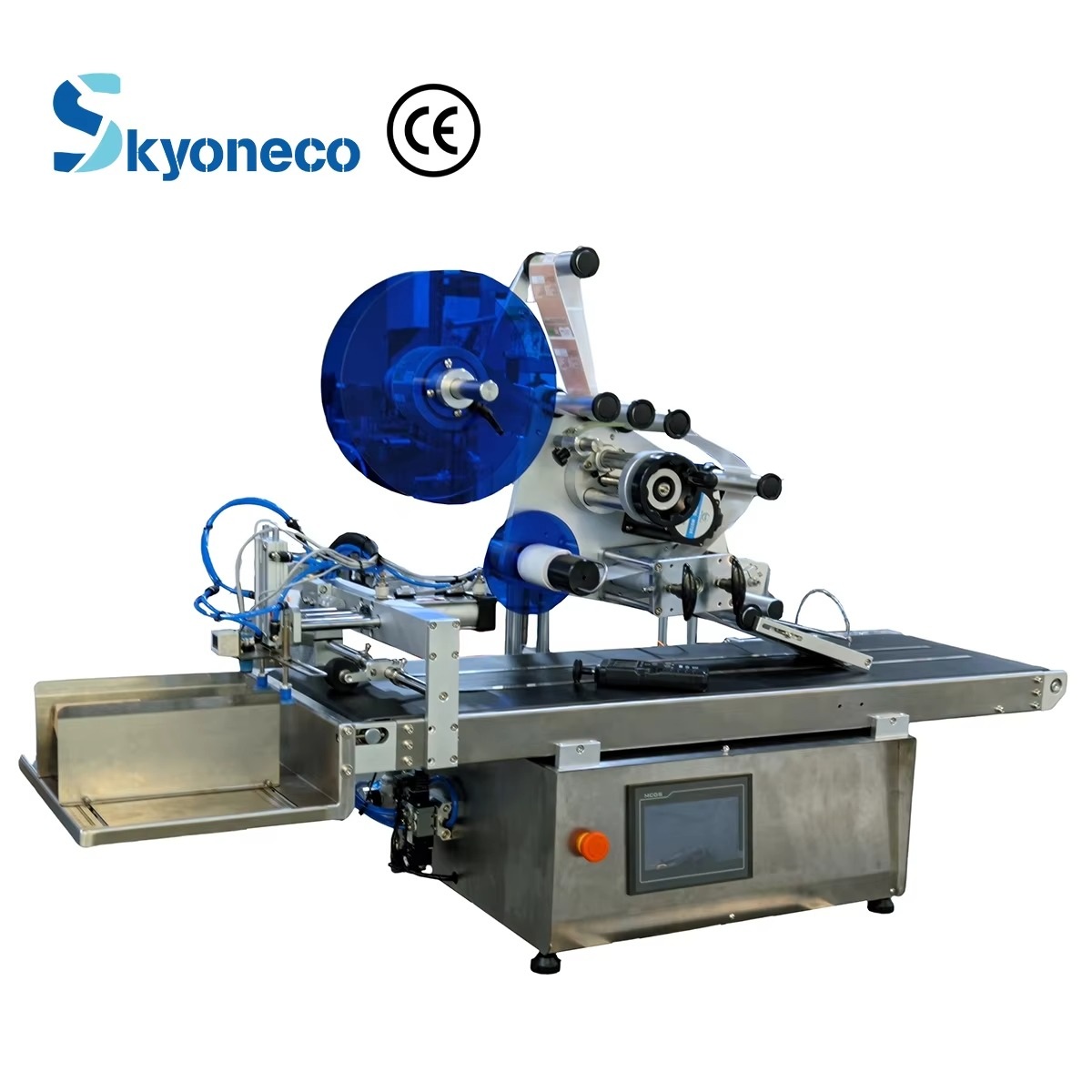

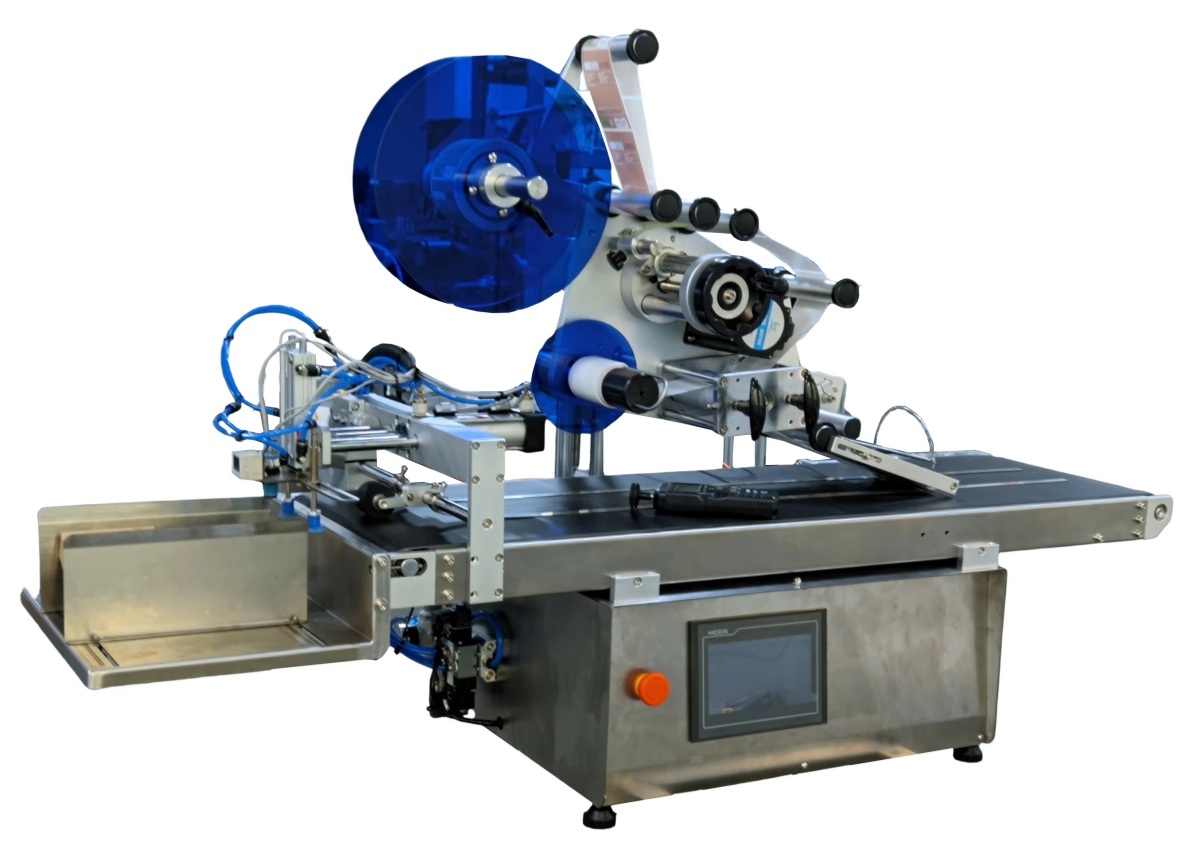

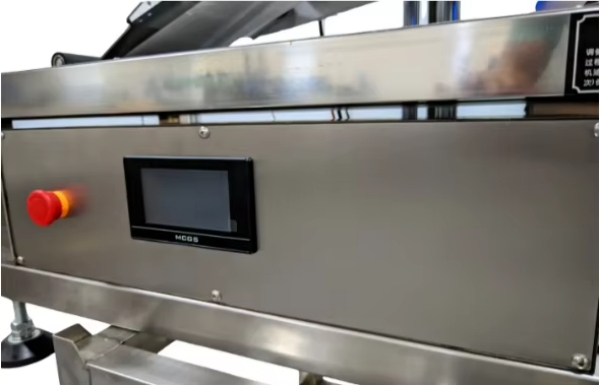

Desktop Fully Automatic Flat Suction-Type Card Separating and Labeling Machine with Feeder

Compared to standard friction feeders, the SKYONE-900FK Card Labeling Machine is specifically designed to address the critical challenges associated with separating ultra-thin, extremely lightweight, and static-prone materials (such as anti-static bags and ultra-thin cards). This model employs an advanced vacuum suction system that utilizes high-performance suction cups to pick up and separate items one by one, thereby ensuring the flawless, precise, and individual-item conveyance of ultra-thin cards, lightweight flexible PET pouches, and anti-static bags.

We provide free material testing. Send us your samples, and we will send back a video demonstration of the SKYONE-900FK handling your specific products.

Item No :
SKYONE-900FK
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
750W
Weight :
About 185kg
Labeling Accuracy :
±1mm
Labeling Speed :
25-55 pcs/min
Label Size :
L:20-400mm; W:20-135mm
Product Size Diameter :
L:40-400mm; W:40mm-250mm

Inquire Now

Product Detailed Information

The Automatic Card Labeling Machine Feeder is specifically designed to handle "high-friction, challenging" products, utilizing high-performance vacuum suction cups to pick up and separate materials one by one. It offers a perfect solution for materials that are too light or thin to be processed by standard friction-type feeders—such as anti-static bags, ultra-thin plastic films, and lightweight paper.

Zero-Damage "Pick-and-Place" Logic: Unlike mechanical friction rollers that can scratch or scuff delicate surfaces, the 900FK’s suction cups pick up each product with zero surface friction. This ensures that high-gloss cards and sensitive packaging remain in pristine condition throughout the feeding process.

Technical Specifications

Model	SKYONE-900FK
Labeling Accuracy	±1mm
Labeling Speed	25-55 pcs/min
Label Size	L:20-400mm; W:20-135mm
Product Size	L:40-400mm; W:40mm-250mm
Weight	About 185kg
Power	750W

Operation Video

Industry Applications

Tag / Card / Pouch /File pocket etc

This suction-type model is superior for lightweight and delicate flat products:
Electronics: Anti-static (ESD) bags, shielding bags, and micro-component carriers.
Healthcare: Medical masks, sterile pouches, and flat instruction manuals.
Cosmetics: Sheet mask pouches, sample sachets, and small card inserts.
Stationery: Ultra-thin postcards, stickers, and premium paper tags.

Desktop Automatic Card Labeling Machine Application

Feature	SKYONE 900FK (Suction Type)	SKYONE 890FK (Friction Type)
Feeding Mechanism	Pneumatic Vacuum Suction	Mechanical Friction Roller
Primary Strength	Best for Ultra-thin & Lightweight materials	Best for High-speed card production
Labeling Speed	25 - 55 pcs/min	50 - 200 pcs/min
Material Compatibility	Anti-static bags (ESD), thin films, soft pouches, light cards	Standard cards, paper bags, envelopes, stiff pouches
Static Handling	Excellent (Suction breaks static cling)	Average (Static may cause double-feeding)
Product Thickness	Handles extremely thin films & soft foils	Requires a minimum stiffness for separation
Setup Complexity	Moderate (Vacuum adjustment needed)	Simple (Mechanical width adjustment)

Core Components Details

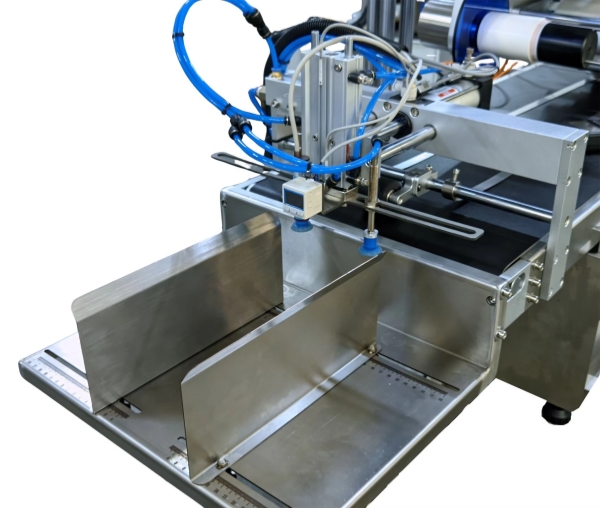

Page Separation Device

The SKYONE-900FK Card Labeling Machine is equipped with a feeder specifically designed for flat products—such as cards, labels, or pouches—capable of holding a batch of 50 to 100 items at a time (depending on product thickness). Compared to the 890FK model, this feeder is better suited for smaller and lighter products, such as plastic bags, paper sheets, and similar items.

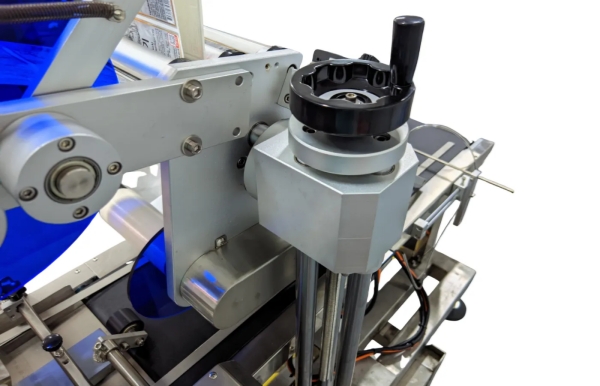

Automatic Card Labeling Machine Handwheel

Multi-Axis Handwheel Adjustment

Allows operators to calibrate the machine for different product widths (40-250mm) and lengths (40-400mm) within minutes.

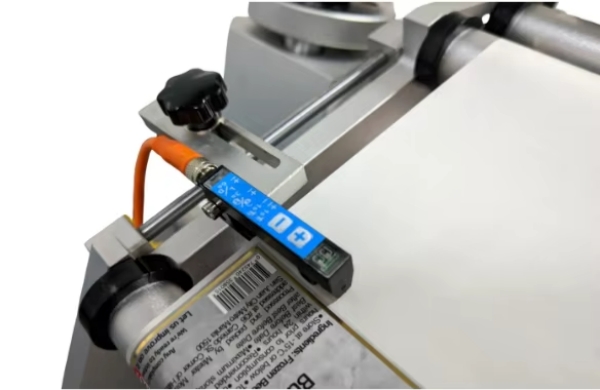

Desktop Automatic Card Labeling Machine Sensor

High-Sensitivity Optical Sensors

Features a "No Product, No Label" logic to prevent material waste and ensure clean operation.

Pneumatic Suction Feeder

The heart of the 900FK. High-sensitivity vacuum nozzles ensure individual separation of the thinnest materials without friction damage.

WHY CHOOSE US

Solution Provider

We will offer professional advice according to customization requirements, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering text communication and video, and on-site guidance in English.

Professional R&D Team

Develop 30 to 50 units each year to meet different customers' need and support OEM order.

One Year Warranty

Within one year, you can replace part if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide service in the future.

More Services

Sticking label service, printing label service, testing sample service and some overseas shipping warehouses.

Labeling Machine FAQ

Q1. Does it require an air compressor? A: Yes, a standard pneumatic supply is needed for the vacuum suction.

Q2. Can it handle clear labels? A: Optional ultrasonic sensors can be added for transparent labels.

Q3. How does it prevent double-feeding? A: The vacuum nozzles are calibrated via PLC to ensure only the top layer is lifted.

Q4. Can it label anti-static (ESD) bags? A: Yes, the suction cups effectively break the static cling that typically causes friction feeders to jam.

Q5. Is it suitable for very thin film pouches? A: Yes, the vacuum pick-and-place method prevents the wrinkling or scratching often caused by traditional rollers.

Q6. How long does a product changeover take? A: Typically under 10 minutes, as it only requires simple handwheel adjustments for different product widths and lengths.

Q7. Can I integrate it into a larger production line? A: Yes, the PLC system and conveyor interface allow for easy synchronization with upstream filling or downstream packing machines.

Q8. What is the maximum thickness it can handle? A: It handles products up to 5mm thick; for heavier or thicker items, the suction force can be adjusted via the pneumatic regulator.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
