Automatic Desktop Corner Labeling Machine

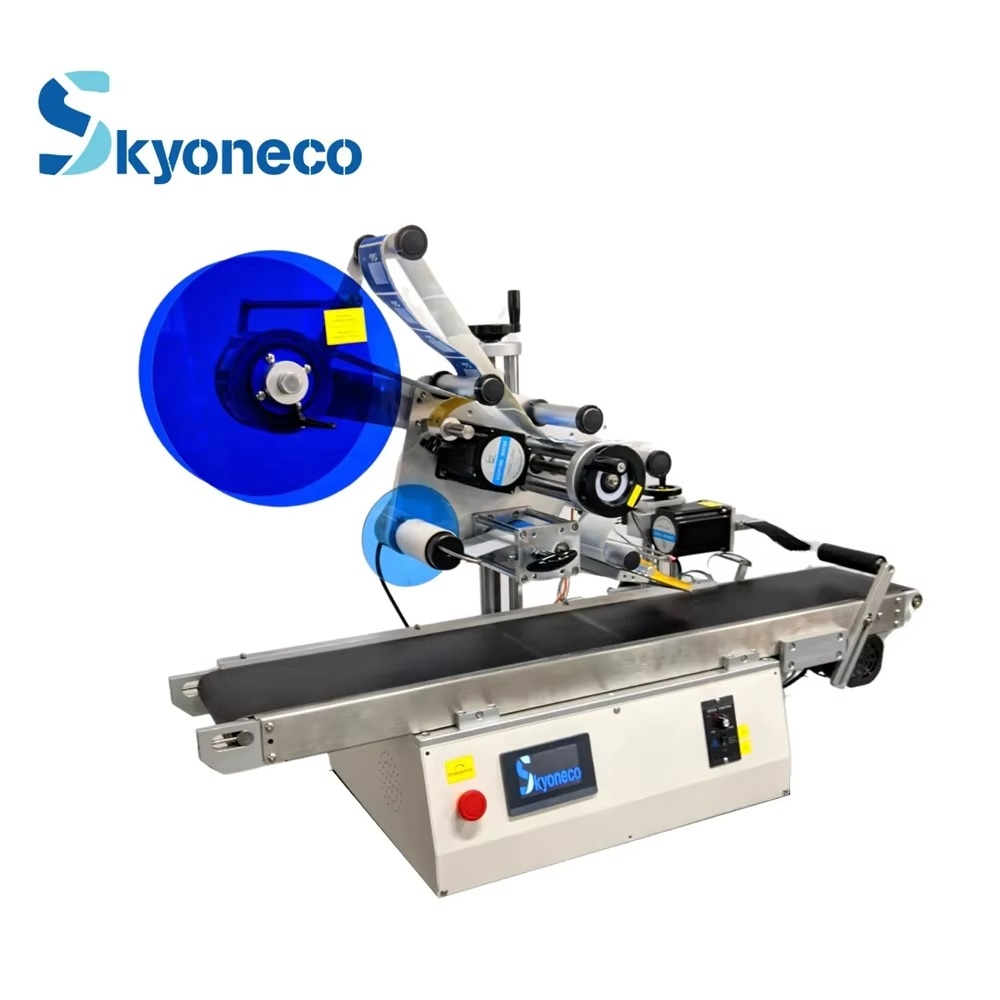

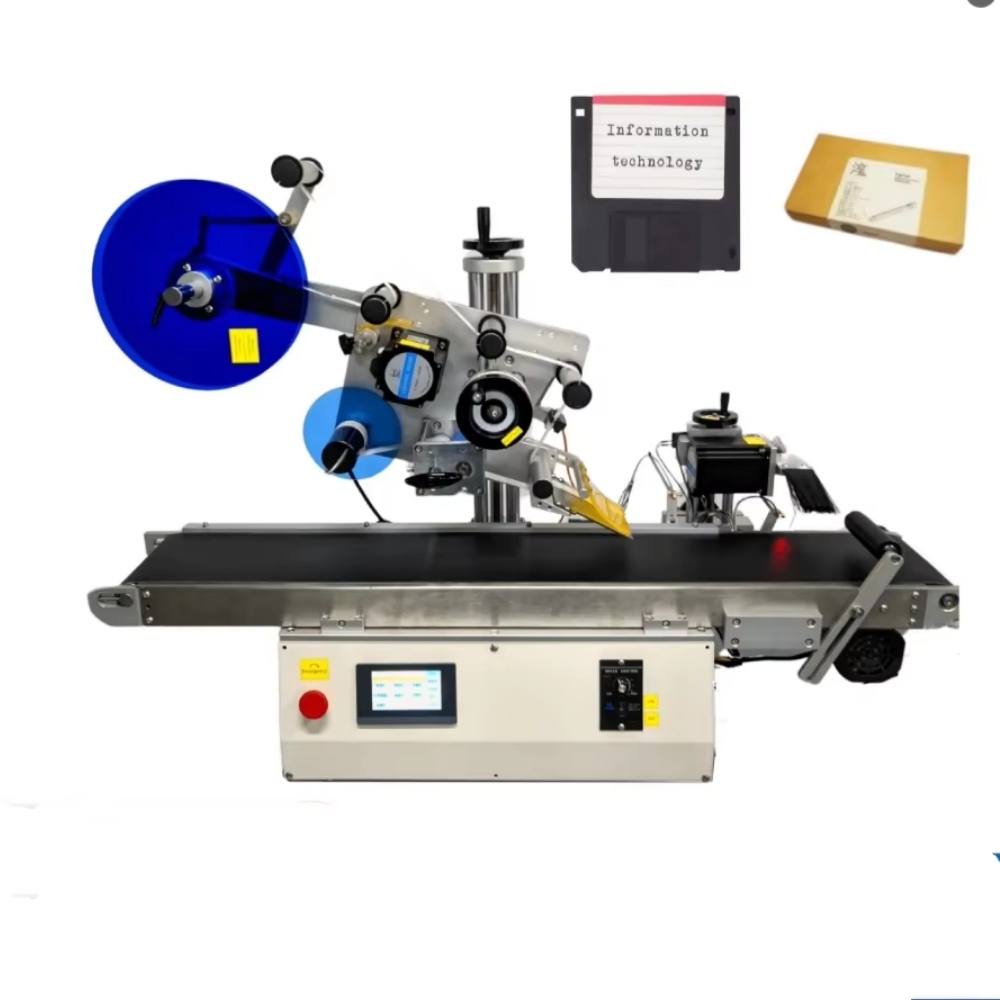

Desktop Fully Automatic Flat Corner Labeling Machine

The Desktop Fully Automatic Flat Corner Labeling Machine is an engineered, space-saving solution designed for high-precision tamper-evident sealing and multi-surface corner wrapping. Built specifically for medium-to-high velocity packaging lines where factory floor space is premium, this compact system seamlessly transitions top-surface labeling onto the side face of flat products or cartoned packaging.

Unlike standard flat labelers, this model integrates a synchronized mechanical edge-folding mechanism and a high-elasticity wipe-down system. This ensures that overlapping label flaps are firmly swept and adhered around edges without lifting or trapping air bubbles.

Item No :
SKYONE-850ZJ
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
500W
Weight :
About 120kg
Labeling Accuracy :
±1mm
Labeling Speed :
30-80 pcs/min
Label Size :
L:10-300mm; W:20-100mm
Product Size Diameter :
L:40-400mm; W:40mm-250mm;H:0.2mm-150mm
Machine Size :
L:51.2inch; H:36.2inch; W:19.7inch

Inquire Now

Product Detailed Information

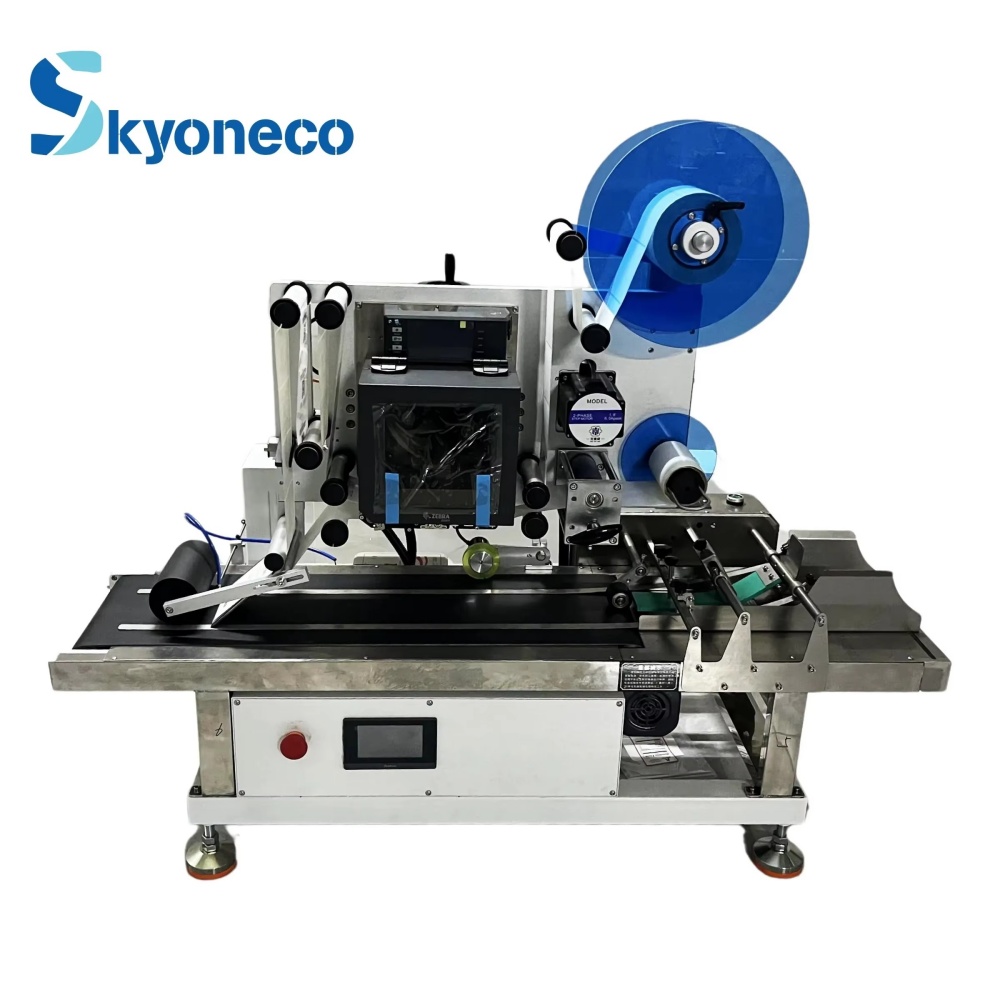

The system can be fed manually by an operator for short-run custom batches, or paired directly with an automated card/box feeder to create a completely autonomous, unmanned desktop packaging station.

Zero-Flagging Adhesion Control: To eliminate the 'memory effect' of stiff label materials trying to straighten out at a 90-degree angle, our corner sweeps apply an progressive downward and lateral pressure grid, forcing maximum adhesive-to-surface wet-out on both faces.

Technical Specifications

Model	SKYONE-850ZJ
Labeling Accuracy	±1mm
Labeling Speed	30-80 pcs/min
Label Size	L:10-300mm; W:20-100mm
Product Size	L:40-400mm; W:40mm-250mm;H:0.2mm-150mm
Weight	About 120kg
Power	500W
Machine Size	L:51.2inch; H:36.2inch; W:19.7inch

Operation Video

Industry Applications

Medicine / Cosmetic / Electronic / Daily / Hardware

This requires flat products with a certain thickness and height. However, the label is applied to areas that require corners (similar to the sealing label on a box of cold medicine). The application is the same as a flat labeling machine; essentially, a corner-turning device is added to the labeled area (a brush is used to pat the excess label into the corner position for adhesion).

Core Components Details

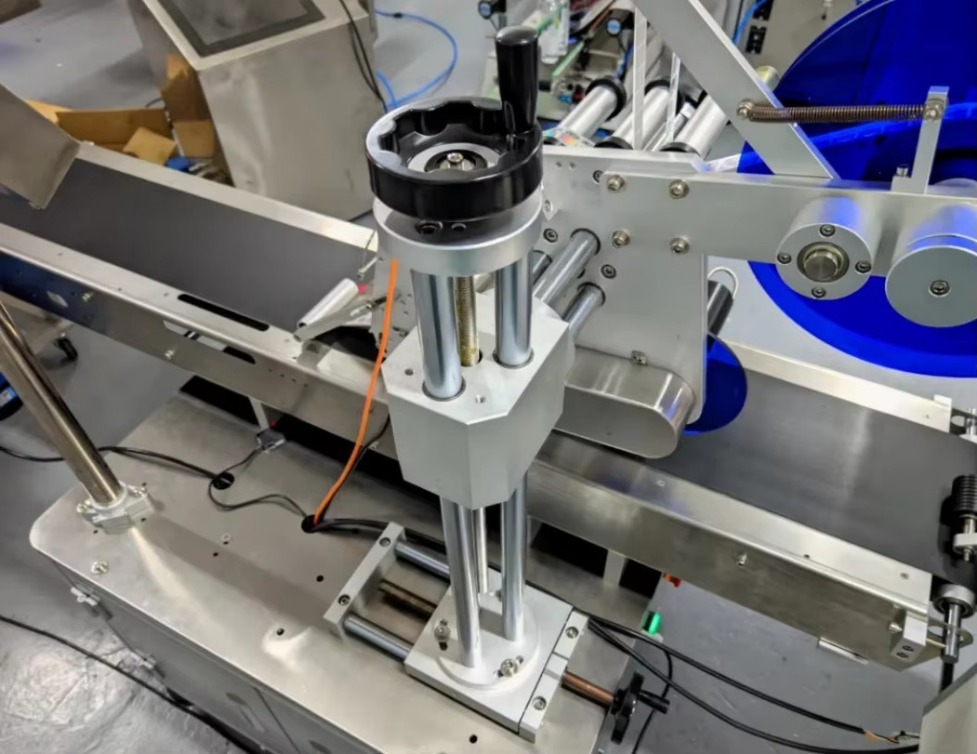

Universal Hand-Wheel Adjustment Grids

Equipped with metric scale indicators along three axes, allowing operators to adjust channel widths and height clearings for completely different box sizes in under 5 minutes.

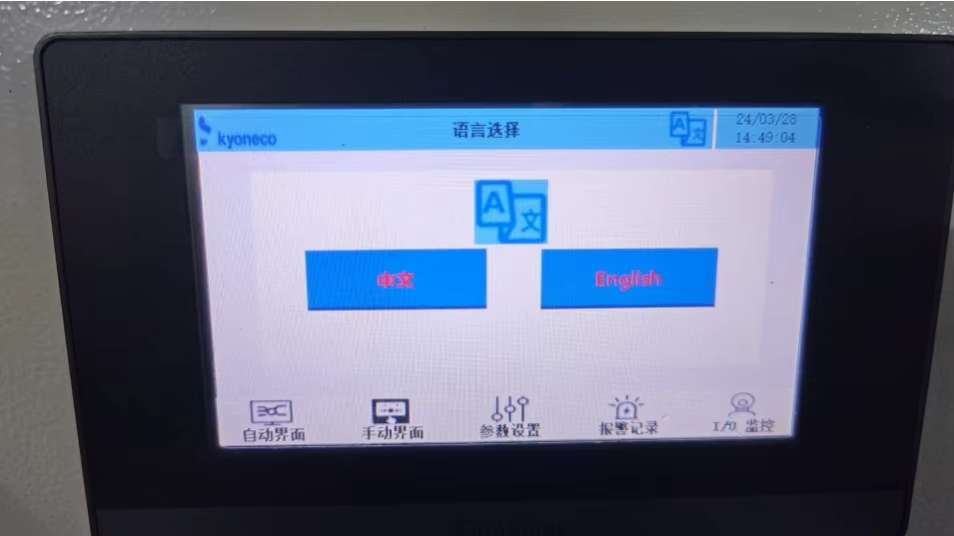

Human-Machine Interface

Equipped with an intelligent human-machine interface, it is simple and user-friendly to operate. It supports multiple languages including English, Spanish, German, and French, helping you to control work data more easily and accurately.

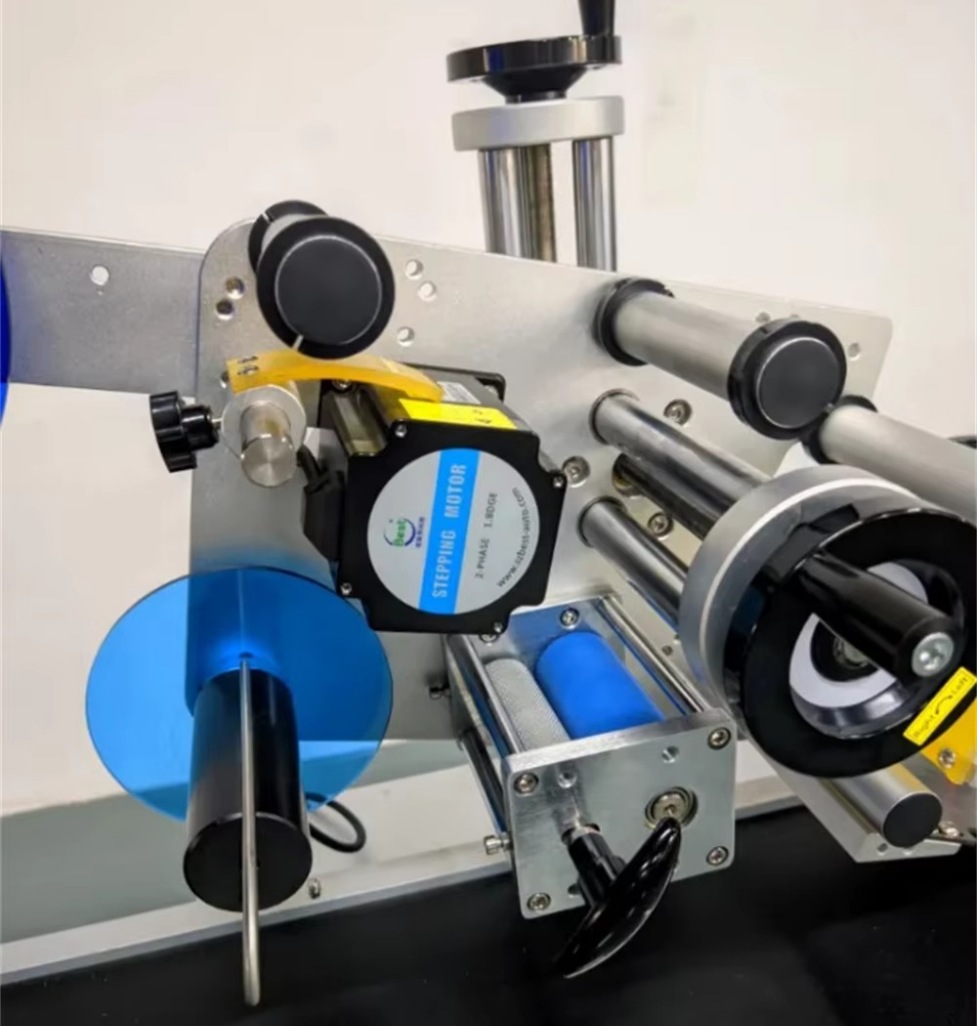

High-Precision Modular Labeling Head Engine

Driven by a high-torque, industrial-grade stepper motor, the dispensing head eliminates manual feed variances to ensure sub-millimeter precision. Combined with integrated micro-adjustment hand-wheels and a specialized silicone traction roller system, it stabilizes label web tension during high-velocity deployments, guaranteeing flawless peel-off and zero structural skewing before the label reaches the corner-folding sweep station.

WHY CHOOSE US

Solution Provider

We will offer professional advice according to customization requirements, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering text communication and video, and on-site guidance in English.

Professional R&D Team

Develop 30 to 50 units each year to meet different customers' need and support OEM order.

One Year Warranty

Within one year, you can replace part if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide service in the future.

More Services

Sticking label service, printing label service, testing sample service and some overseas shipping warehouses.

Labeling Machine FAQ

Q1. What is the maximum labeling speed of this machine? A: It labels 25 to 40 pieces per minute, depending on the bottle diameter, label length, and whether the Zebra printer is printing real-time complex data.

Q2. What makes the positioning accuracy reach ±0.5mm? A: It utilizes a specialized 3-roller vertical positioning mechanism that locks the bottle in place during rotation, ensuring significantly higher alignment than standard wrap-around labelers.

Q3. Which print engine does it use, and can I change the resolution? A: It integrates the industrial-grade Zebra ZE511 engine. You can choose between 300 dpi (standard) or 600 dpi (for micro-text and high-density barcodes) configurations.

Q4. Can I integrate this labeling machine into an existing production line? A: Yes. It features standard communication interfaces and synchronized speed control, making it ideal for integration into 3-in-1 filling, capping, and labeling lines.

Q5. What are the limits for compatible bottle sizes? A: It accommodates bottle diameters from Φ25mm to Φ100mm and bottle heights from 25mm to 300mm. Adjustments can be made easily via mechanical hand-wheels.

Q6. How long does it take to switch between different bottle sizes? A: Product changeover takes about 10–15 minutes. It requires simple mechanical adjustments of the guide rails and positioning rollers without needing special tools.

Q7. Does the machine support transparent labels? A: Yes, but it requires an optional clear label sensor (ultrasonic sensor). The standard configuration uses photoelectric sensors designed for opaque paper/plastic labels.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
