Automatic Flat Labeling Machine With Printer

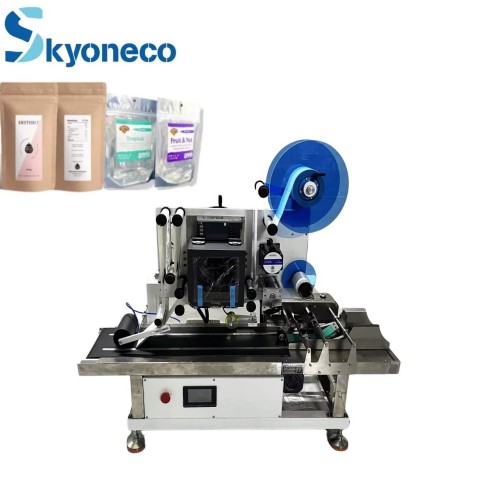

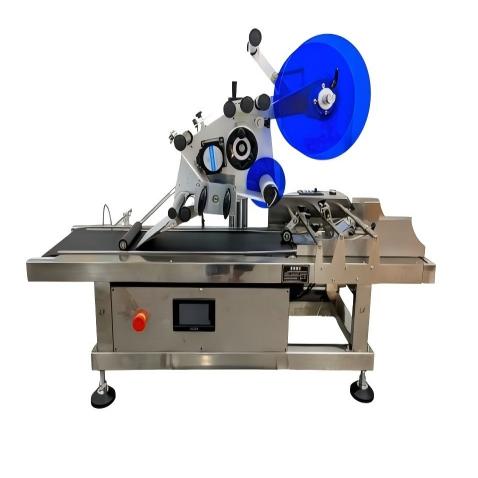

Desktop Automatic Flat Labeling Machine with Printer

The SKYONE-890FK-P is a commercial-grade, space-saving desktop labeling system engineered for automated high-precision top-surface labeling. Equipped with a built-in high-performance printer and an advanced industrial paging (separating) mechanism, it delivers a seamless "Feed - Print - Label" all-in-one workflow.

Item No :
SKYONE-890FK-P
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
750W
Weight :
About 140kg
Labeling Accuracy :
±1mm
Machine Pump :
Rotor Pump

Inquire Now

Product Detailed Information

Unlike standard bag labelers that struggle with soft, flimsy films, the SKYONE-890FK-P is optimized for flat products with a certain degree of stiffness or semi-rigid flat items (similar to professional card dispensing technology).

Smart Integrated Printer: Supports real-time synchronous printing of production dates, batch numbers, QR codes, barcodes, and dynamic text. Modify layouts directly via computer control.
High-Stiffness Paging Technology: Features a specialized separating mechanism ideal for semi-rigid flat pieces. It ensures smooth, individual piece feeding from the stack without scratching the product surface or double-feeding.
Industrial Precision Desktop Design : Compact footprint that easily fits on a standard production table, yet delivers industrial-grade accuracy (±1mm) driven by high-torque stepper/servo motors and intelligent fiber-optic sensors.
User-Friendly PLC Touchscreen：Intuitive touch interface with multi-language support. Easy parameter setup for conveyor speed, label lengths, and micro-adjustments.

Technical Specifications

Model	SKYONE-890FK-P
Filling Accuracy	±1%
Filling Speed	50-200 pcs/min
Label Size	L:20-400mm; W:20-135mm
Product Size	L:40-400mm; W:40mm-250mm;

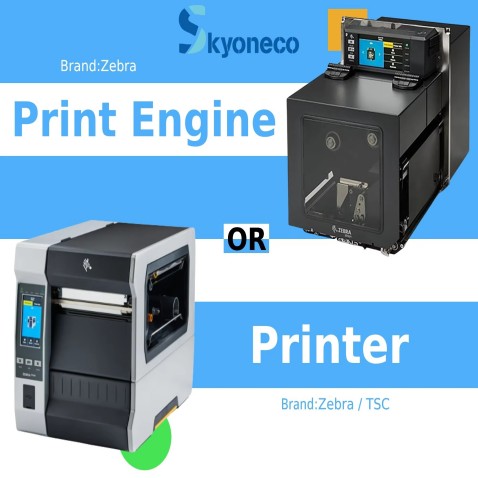

Printer Zebra	ZE511（It depends on the client's requirements/budget）
Machine Weight	About 140kg
Power Consumption	750W
Dpi	300dpi/600dpi
Print Width	100mm

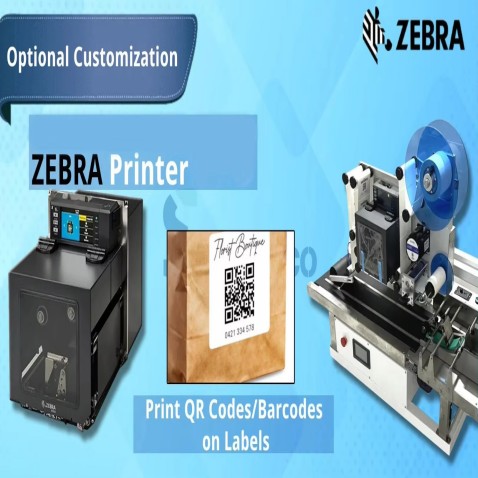

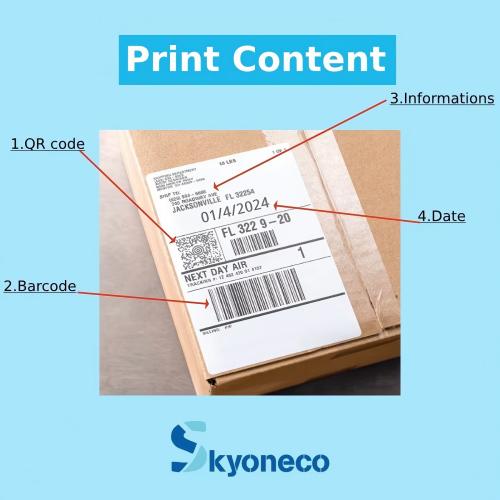

SKYONE-890FK-P Printed Content Example

The integrated Zebra™ print engine and intelligent PLC allow for dynamic, real-time printing of complex information on any compatible label, matching the machine's industrial speed and accuracy.

[1]. Dynamic 2D QR Code for real-time tracking and digital links, printed at up to 600dpi for maximum readability.
[2]. High-Speed Industrial Barcode (Tracking #) for rapid logistics and warehouse scanning, synchronous with product feeding.
[3]. Variable Address & Contact Informations, printed instantly and correctly, supporting up to 100mm width.
[4]. Real-time Production / Expiry Date (01/4/2024), updated automatically for food and chemical applications.

Operation Video

Industry Applications

Tag / Card / Empty Pouch /File Pocket etc

Automatic Flat Labeling Machine Application

Core Components Details

HMI

Equipped with intelligent HMI,it is friendly user.There are different kinds of languages such as English,Spanish,Germany and French,helps to control the working data easier and more accurately.

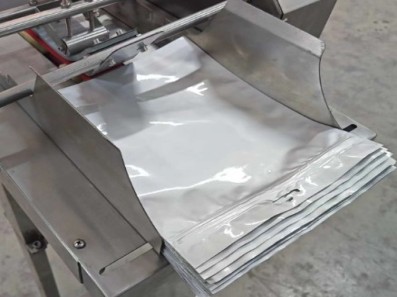

Feeder

Positioned on the right side of the SKYONE-890FK-P, the feeder is tailored for processing flat items such as cards, tags, and bags. It allows users to load 50-100 pieces at once, varying by product thickness. By precisely separating the items page by page, it guarantees a seamless and precise labeling process.

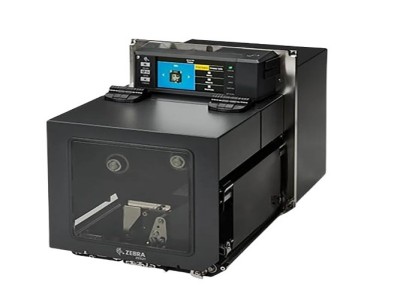

Zebra™ Printer Engine

Powered by the built-in Zebra™ ZE511 Print Engine, the SKEONE-890FK-P supports printing barcodes, QR codes, dates, numbers, and letters onto labels. The system accommodates a maximum print width of up to 100mm.

Lable Sensor

The machine is equipped with a high-precision label sensor designed to detect the gaps between labels. It ensures accurate label positioning and precise dispensing control for every single labeling cycle

Why Choose Us

Customized Solutions

From specialized nozzle designs for anti-foaming to custom conveyor lengths, we tailor every machine to your specific material viscosity.

Material Experts

Our engineers have over 20 years of experience in fluid dynamics, helping you solve filling challenges for honey, sauce, creams, and oils.

Advanced R&D

We develop 30 to 50 new filling units annually, integrating the latest servo technology to meet evolving industry standards.

One Year Warranty

Total peace of mind with a comprehensive 12-month warranty on all core components, including the rotor pump and servo system.

Lifetime Support

Our global service team provides technical consultation and maintenance advice throughout the entire lifecycle of your machine.

Turnkey Integration

Complete production line services including upstream mixing tanks and downstream capping and labeling machine integration.

Desktop Automatic Flat Labeling Machine FAQ

Q1. Can it handle completely soft plastic bags? A: No. It is optimized for flat items with a certain stiffness (like paper bags, PET pouches, cards, and bookmarks) to ensure smooth automatic feeding.

Q2. Will the feeding mechanism scratch my premium pouches or cards? A: Absolutely not. The machine uses premium, soft anti-wear rubber rollers and friction pads—never metal scrapers—ensuring your printed or glossy surfaces stay scratch-free.

Q3. What can the printer print, and is it easy to change? A: It prints dates, batch numbers, barcodes, and QR codes in real time. You can change text instantly via the computer/PLC software without stopping the line.

Q4. How does it keep a $\pm1\text{mm}$ accuracy at high speeds? A: By combining precision optical sensors (to detect edges), high-torque motors (for stable feeding), and calibrated pressure rollers to lock the product in place during labeling.

Reliability is our priority. Every SKYONE series filling machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
