Automatic High-Speed Friction Feeder & Flat Labeling Machine for Pouches and Cards with Date Printer

The SKYONE-890FK-DM is a high-performance, integrated solution designed specifically for the automated labeling of flat, semi-rigid products. Combining a robust friction feeding system with a high-speed labeling head, this model excels at processing paper bags, PET pouches, industrial cards, and bookmarks with seamless efficiency.

Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
750W
Weight :
120kg
Labeling Accuracy :
±1mm
Labeling Speed :
50-200 pcs/min
Label Size :
L:20-400mm; W:20-135mm
Product Size Diameter :
L:40-400mm; W:40mm-250mm

Inquire Now

Product Detailed Information

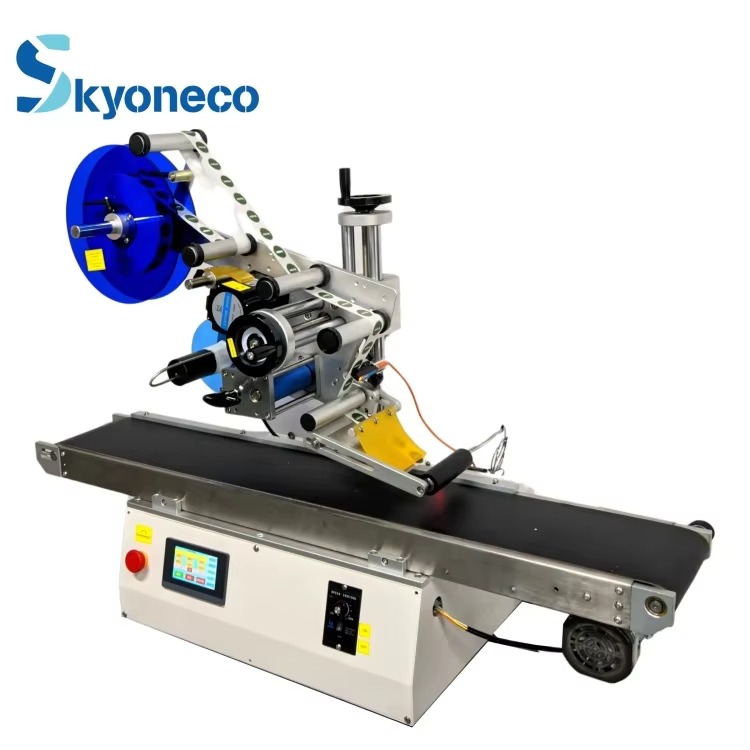

SKYONE-890FK-DM is a high-performance automatic friction feeder and flat labeling machine. It is integrated with a precision feeding system designed for flat objects with a certain degree of rigidity, such as paper bags, PET bags, cards, and bookmarks. This machine automates the separation and labeling process, achieving an accuracy of ±1mm and providing a professional finish for high-volume flat-pack labeling.

Ultra-High Speed: Equipped with a powerful friction feeder, it delivers a high output of 50-200 pcs/min, significantly optimizing production efficiency.
Seamless Separation: Specialized for thin yet rigid flat products, ensuring items like bags and cards are separated one by one without double-feeding.
Precision Alignment: Advanced optical sensors synchronize the feeding and labeling speed to eliminate wrinkles, ensuring perfectly centered labels every time.

Technical Specifications

Model	SKYONE-890FK-DM
Labeling Accuracy	±1mm
Labeling Speed	50 - 200 pcs/min
Label Dimensions	L: 20-400mm; W: 20-135mm
Product Dimensions	L: 40-400mm; W: 40-250mm
Machine Weight	Approx. 120kg
Power Consumption	750W / 110V or 220V

Operation Video

Industry Applications

Paper Bags / PET Pouches / Greeting Cards / Bookmarks / Stationery / Clothing Tags

Automatic Pouch Labeling Machine Application

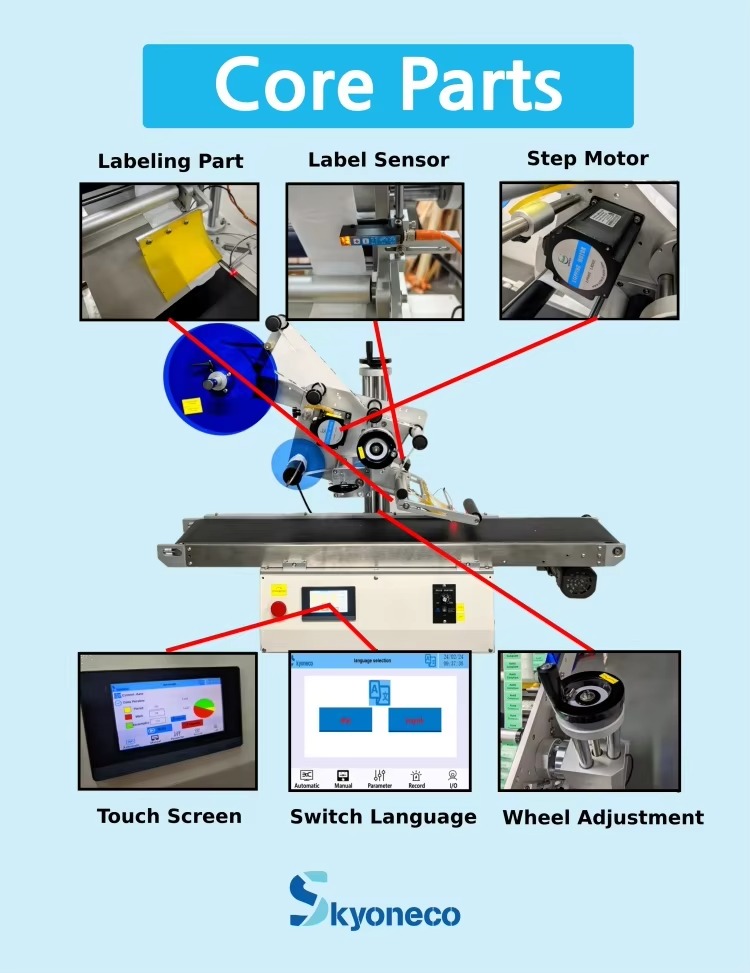

Core Components Details

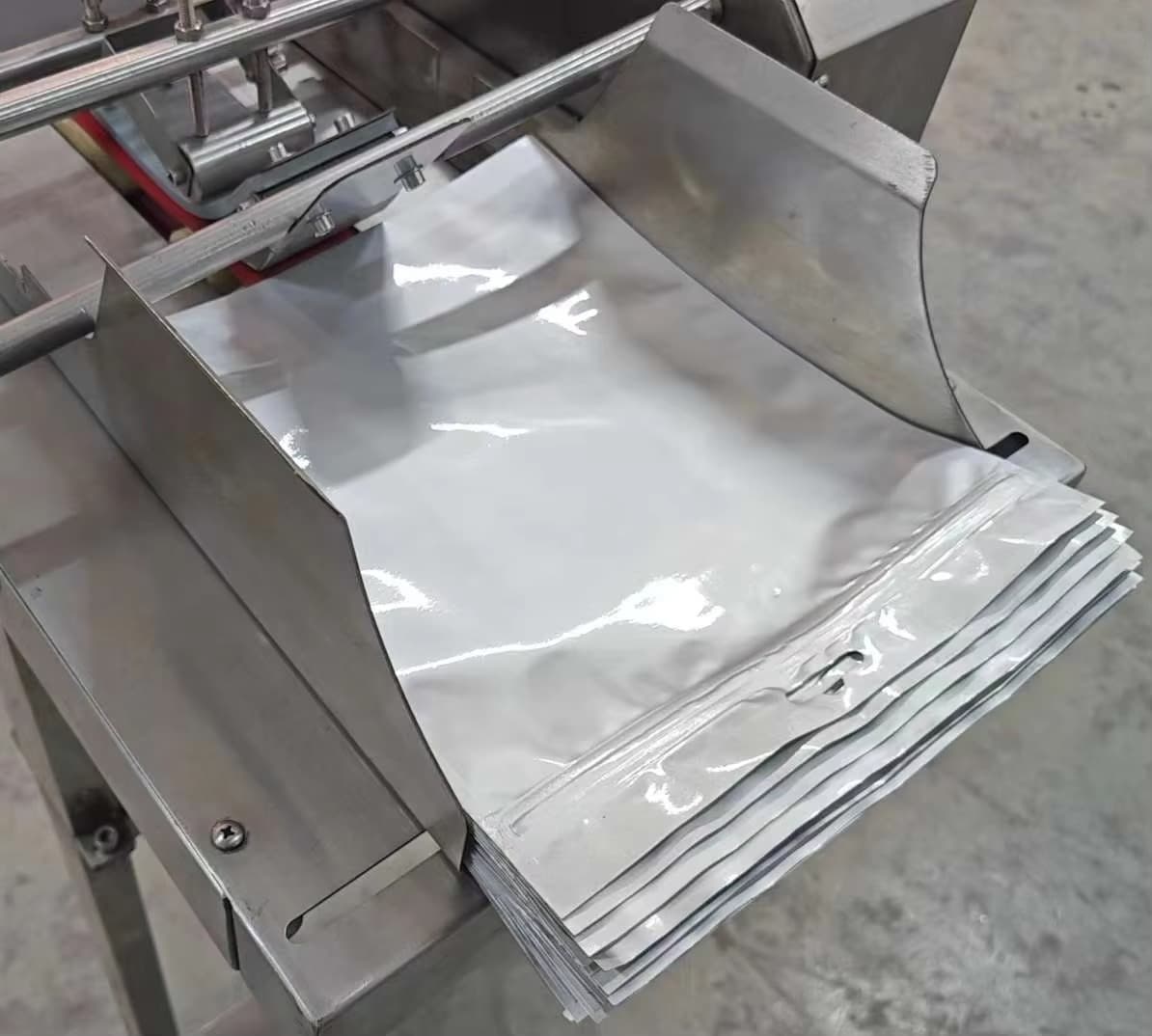

Page Separation Device

The high-efficiency friction feeding module is engineered for seamless separation. Utilizing advanced friction disc technology, it ensures that flat products like paper bags, PET pouches, or rigid cards are separated and fed individually into the system without double-stacking, even at speeds up to 200 pcs/min.

HMI

The multi-language smart touch screen provides an intuitive interface for real-time monitoring. It synchronizes the friction feeder and label applicator, allowing operators to manage high-speed production with precision and ease.

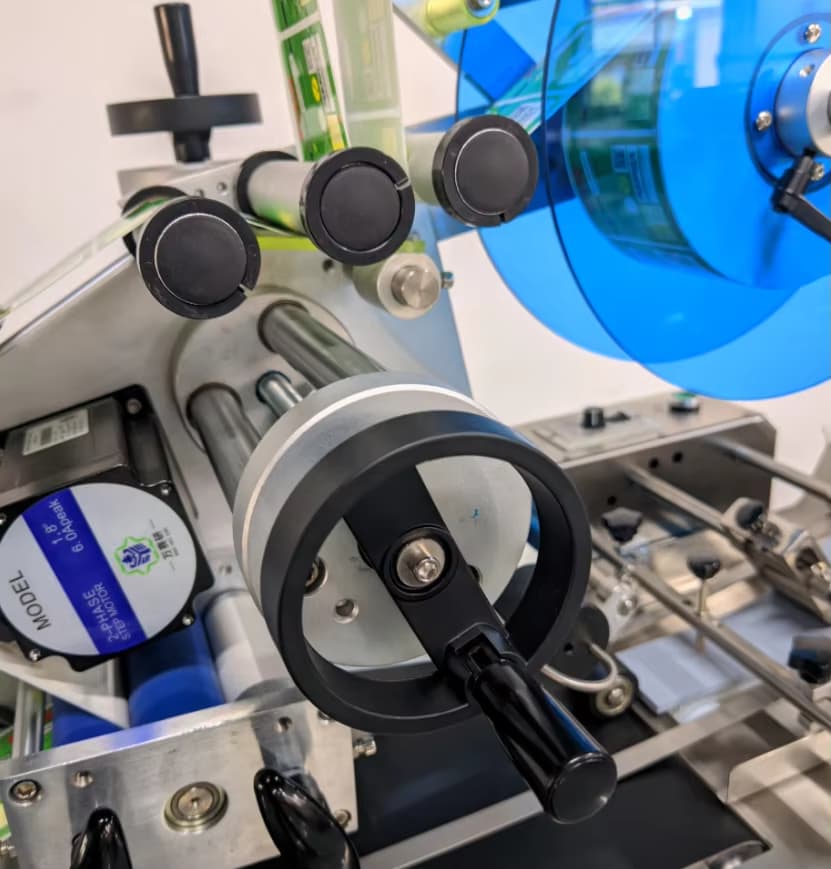

Wheel Adjustment

Equipped with high-precision mechanical handwheels to adjust the feeding gap. This allows the machine to accommodate different thicknesses of paper bags or PET pouches, ensuring accurate separation even for very thin cards.

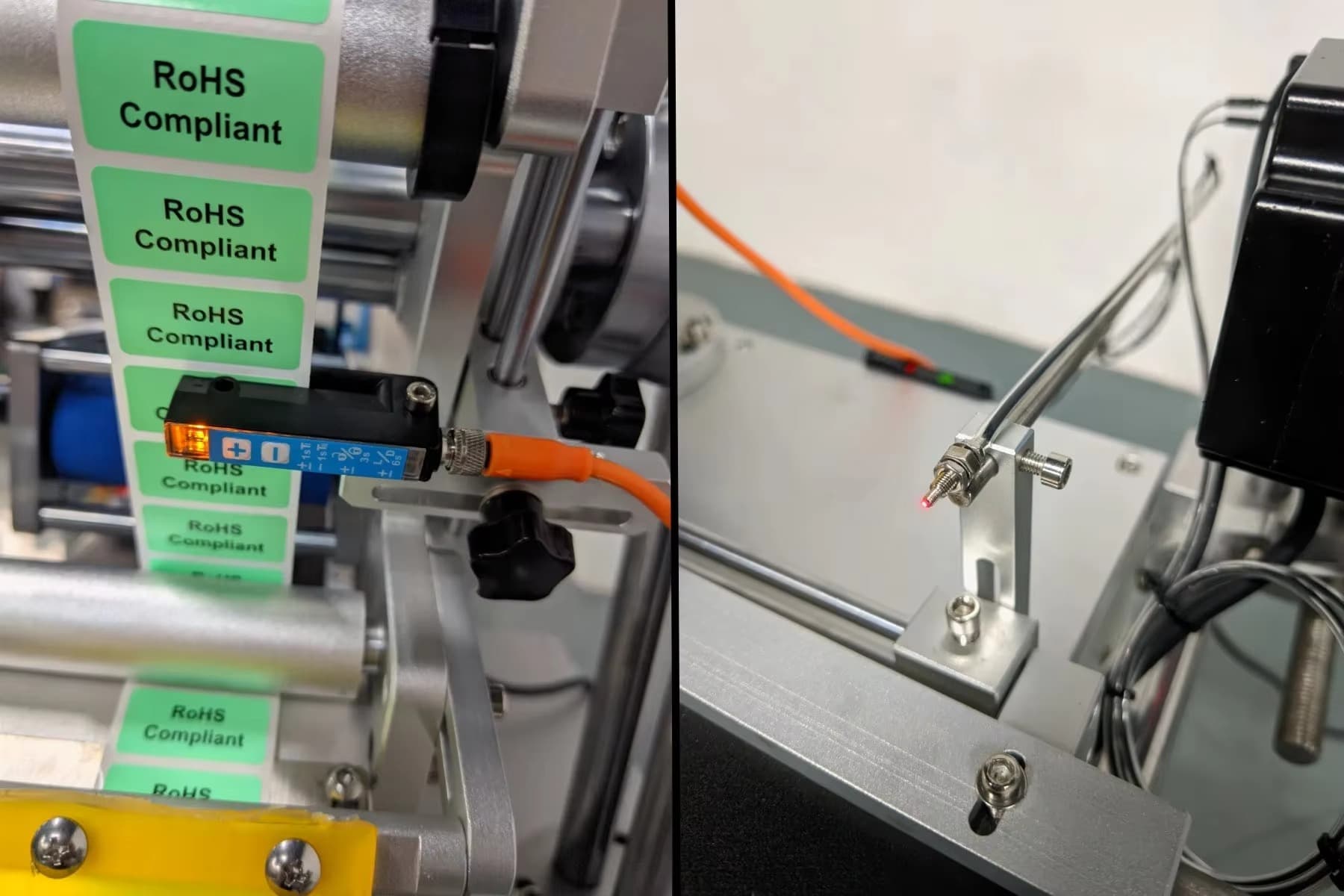

Optical Sensor

Advanced fiber optic sensors are calibrated for fast-moving cards and pouches. The technology prevents missing or misaligned labels, ensuring each item is captured and labeled with pinpoint ±1mm accuracy.

WHY CHOOSE US

Solution Provider

We offer professional feeding and labeling integration advice according to your card or pouch samples, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering guidance on friction feeder calibration in English.

Professional R&D Team

Develop 30 to 50 specialized feeding and labeling units each year to meet different automated packaging needs.

One Year Warranty

Within one year, you can replace feeder belts or labeling head parts if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide feeder optimization and service in the future.

More Services

Sticking label service, printing label service, friction feeding testing for thin samples and overseas shipping warehouses.

Labeling Machine FAQ

Q1. How much is the SKYONE-890FK-DM? A: Please send me your paper bag or card samples and label size, then we can check the best price for you.

Q2. Can it label very thin cards? A: Yes, as long as the material has a certain degree of rigidity, the friction feeder can separate and label it accurately.

Q3. How fast can it process pouches per minute? A: The labeling speed is extremely high, ranging from 50 to 200 pieces per minute depending on the product size.

Q4. What is the power requirement? A: The machine operates at a high-efficiency 750W and is compatible with 110V or 220V power sources.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
