Automatic Electric Flat Labeling Machine for Big Pouch Bag Large Carton Box

The SKYONE-060FK Automatic Flat Surface Labeling Machine is an industrial-grade, high-speed labeling system engineered specifically for big flat-surfaced products requiring rigorous alignment accuracy. Built to sustain continuous production environments, this system integrates advanced control topography to consistently apply adhesive labels onto objects with distinct structural thickness and height,including boxes, lunch boxes (which need to be completely flat), hard material bags, square bottles, etc.

Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Power :
700W
Weight :
About 185kg
Labeling Accuracy :
±1mm
Labeling Speed :
50-150 pcs/min
Label Size :
L:10-30mm; W:20-135mm
Product Size Diameter :
Diameter:40-400mm; W:40mm-200mm; H:0.2mm-150mm

Inquire Now

Product Detailed Information

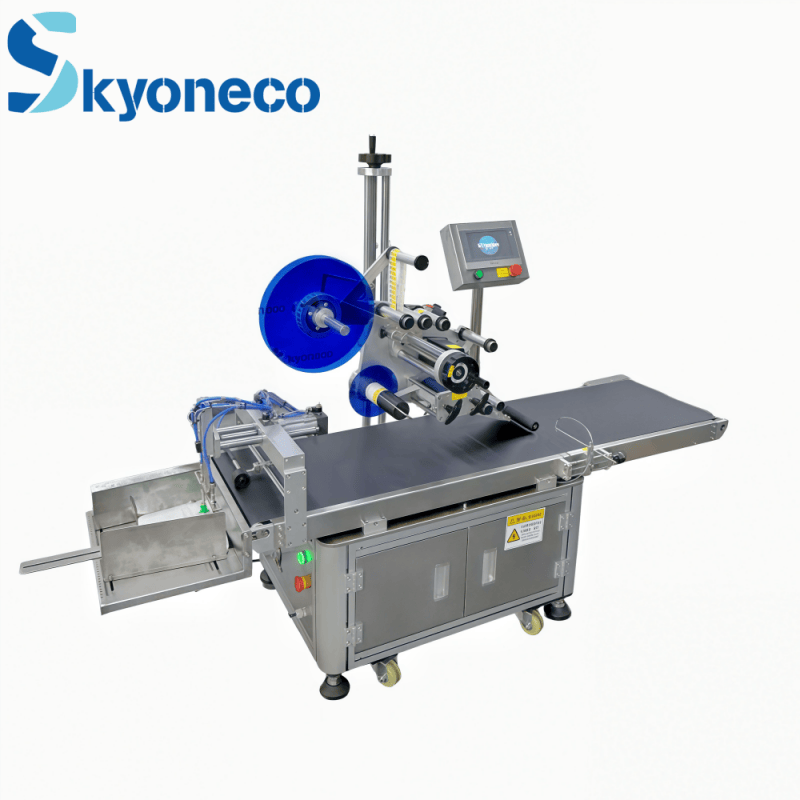

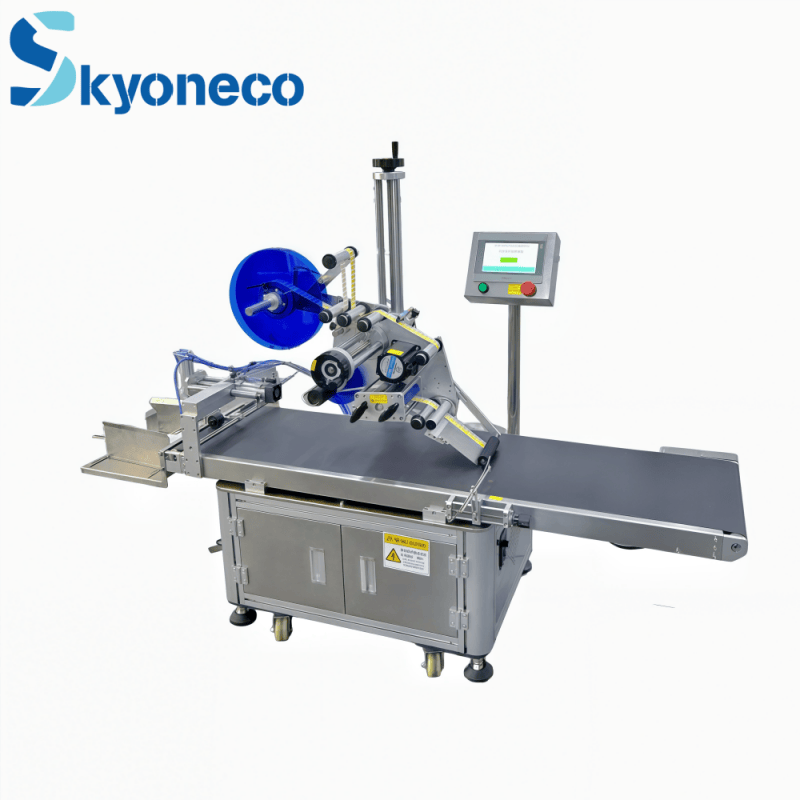

SKYONE-060FK is a heavy-duty, high-performance fully automatic flat labeling machine engineered for industrial efficiency. It provides an optimal solution for applying labels to Large carton, large box, big bag, big card, big foil film bag, etc. Designed with an advanced rotary alignment system to ensure stable container orientation, this system guarantees a flawless, wrinkle-free label finish with a high precision of ±1mm, significantly optimizing your packaging line throughput.

High-Precision Rotary Positioning: Utilizes synchronized optical tracking and robust 3-roller alignment mechanics to achieve an accurate labeling tolerance within ±1mm.
Heavy-Duty Stability: Features a solid 185kg rigid structural chassis to effectively eliminate mechanical harmonic vibration, securing long-term operational calibration during high-speed runs.

Technical Specifications

Model	SKYONE-060FK
Labeling Accuracy	±1 mm
Labeling Speed	50 - 200 pcs/min
Label Size	L:10-300mm; W:20-135mm （Can be customized）
Product Size Compatibility	Diameter:40-400mm; W:40-200mm; H:0.2mm-150mm
Machine Weight	About 185kg
Power Consumption	700W

Operation Video

Application

Food And Beverage Industry / Chemical Industry / etc.

Big
Bag

Big
Pouch

Big
Aluminium Foil Paper

Big
Card

Large
Carton

Large
Box

Other
Big Size Product

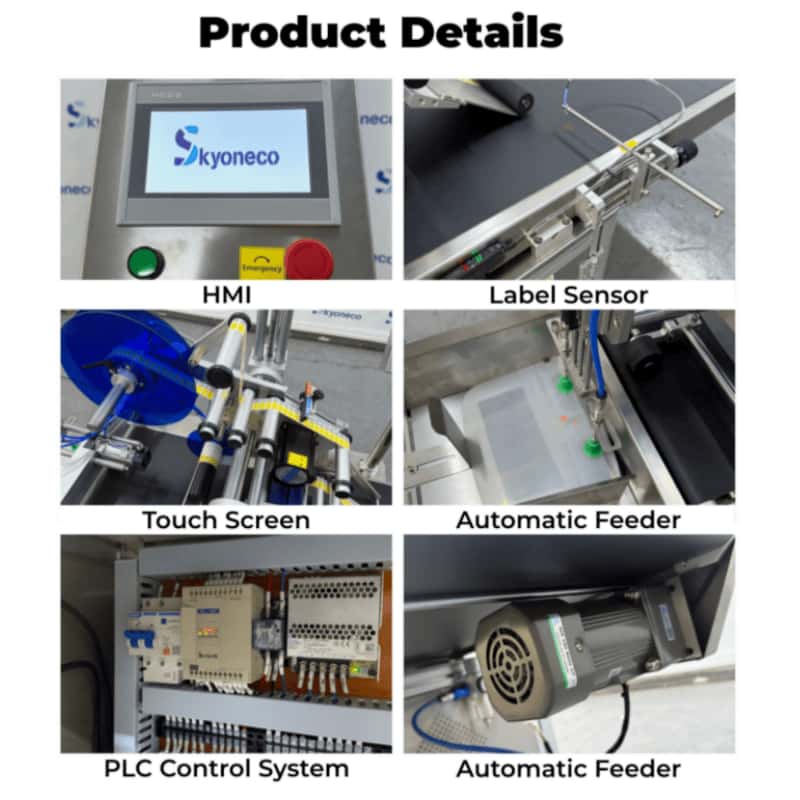

Core Components Details

HMI

Equipped with a smart centralized digital HMI touchscreen layout. Operators can manage calibration profiles and individual head settings effortlessly. The control software natively supports multiple operating languages including English, Spanish, German, and French to monitor dual-feed data smoothly and accurately.

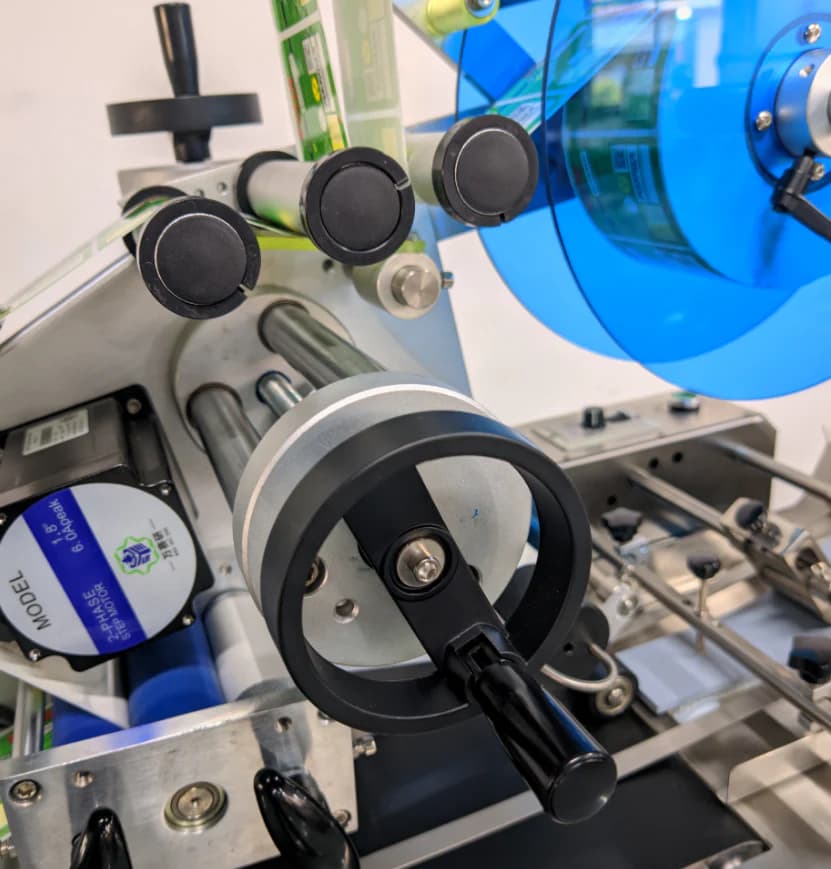

Wheels Adjustment

Features highly flexible, multi-axis mechanical adjustment handwheels. This allows operators to quickly modify the vertical, horizontal, and angular position settings of both labeling heads, ensuring flawless, hassle-free changeovers between various bottle diameters and heights.

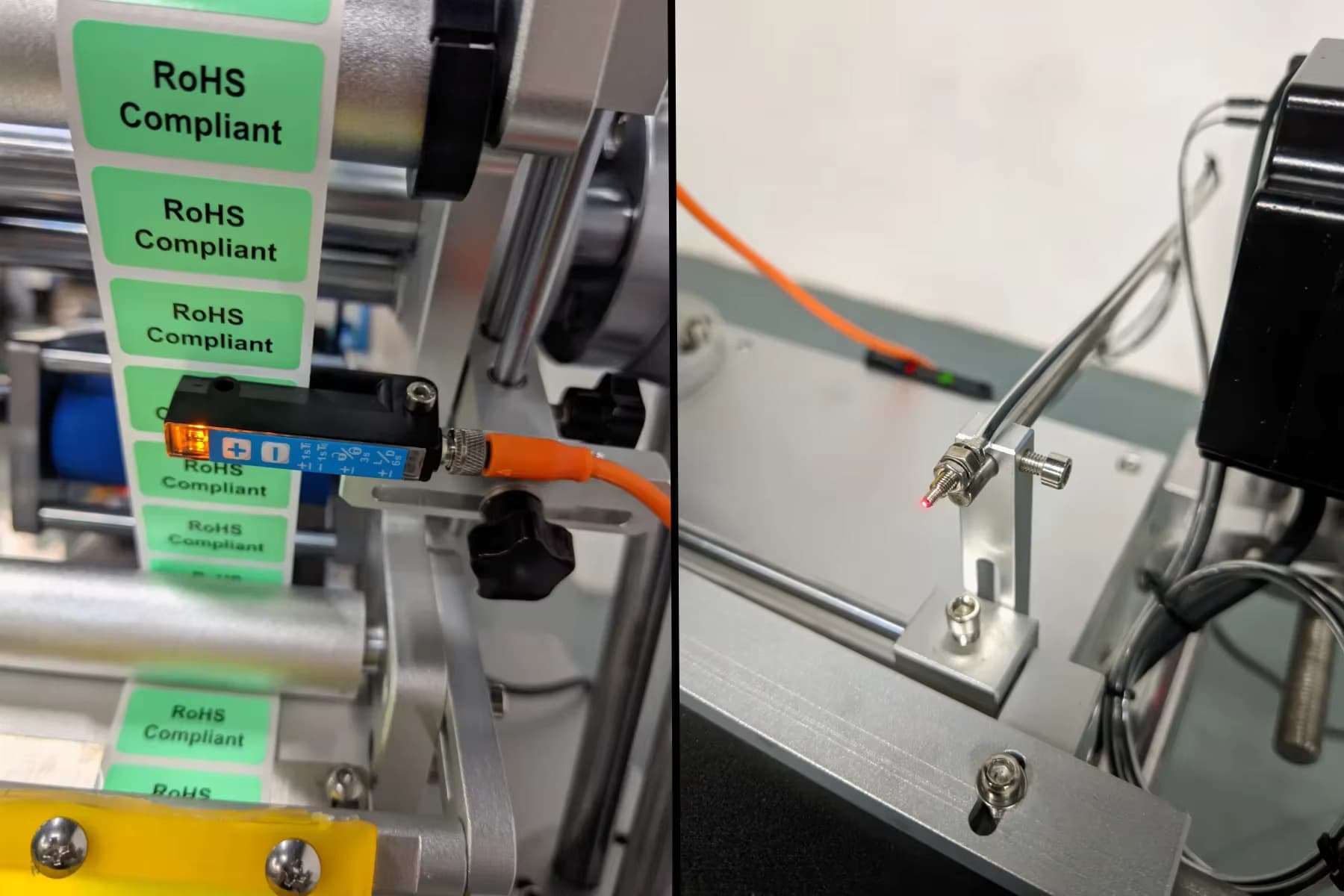

Optical Sensor

The system relies on high-sensitivity optical sensor arrays to monitor moving cylindrical containers on the conveyor. It guarantees accurate radial object detection for real-time positioning execution.

Advanced sensor configurations monitor the product feed and the label backing matrix separately, releasing dual labels in perfect synchronization with bottle positioning.

Why Choose Us

Customized Solutions

We customize the rotary orientation stars, conveyor guide rails, and press components based on your specific bottle samples to ensure 100% stable labeling before shipment.

Expert Engineering

Our team has decades of experience in cylindrical container packaging automation, offering specialized mechanics for high-speed dual-label applications.

Global R&D Standards

We continuously update our dual-dispensing drive controls to integrate seamlessly with standard production setups and upstream liquid filling machinery.

Quality Assurance

Every machine comes with a comprehensive one-year warranty on core components and a complete pre-shipment quality calibration verification.

After-Sales Support

We provide lifetime technical support and spare parts availability to keep your automatic labeling line running reliably 24/7.

Turnkey Service

From web layout sizing advisory to trial testing and global freight logistics, we manage the configuration details so you can focus on scale.

FAQ

Q1. What types of surfaces are best suited for the SKYONE-060FK? A: This model is engineered for large paper boxes, large paper bags, large paper cartons. Usually meet customers' customization need.

Q2. Are your machines suitable for my product? A: Yes. Please provide: product picture and size. We will recommend the most suitable model for you.

Q3. What product diameters and heights can this system accommodate? A: The machine supports standard ranging from Φ40mm up to Φ400mm, and product heights spanning from 0.2mm to 150mm. Beyond this range, customization is available.

Q4. Does this machine require professional implementation and layout assembly? A: The machine is delivered nearly fully integrated. We supply a clear operational guide and full remote engineer consultation to help you get the system synchronized into your existing production line in hours.

Your production stability is our priority. Every SKYONE series machine undergoes a rigorous 72-hour stress test before leaving our facility.
