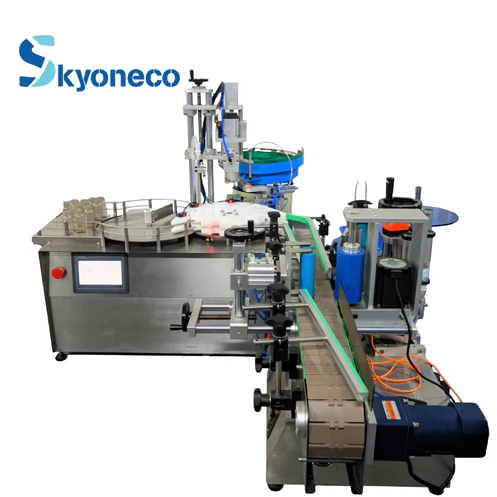

Mini Round Bottle Labeling Capping Filling All-in-One Machine

Our Mini Round Bottle All-in-One Machine integrates high-precision liquid filling, reliable screw capping, and ultra-accurate labeling into a single, compact footprint.
Engineered specifically for small-scale manufacturers in the essential oil, pharmaceutical, and beverage industries, this system synchronizes three critical packaging stages. It eliminates the manual transfer between stations, significantly reducing contamination risks and labor costs while maintaining a consistent throughput of up to 35 bottles per minute.

Item No :
SKYONE-LINE-002
Order(MOQ) :
1
Payment :
PayPal，Visa，Mastercard，Bank，Western Union
Shipping :
Shipping Method: suppot by sea,by express,by air transportation,by train and by truck etc
Delivery Time :
in stock 1-3 days
Cooperative Logistics :
DHL、UPS、FedEx、TNT、TE、EMS
Labeling Accuracy :
±0.5mm
Labeling Speed :
25-35 pcs/min
Label Size :
L:25-285mm; W:25-100mm

Inquire Now

Product Detailed Information

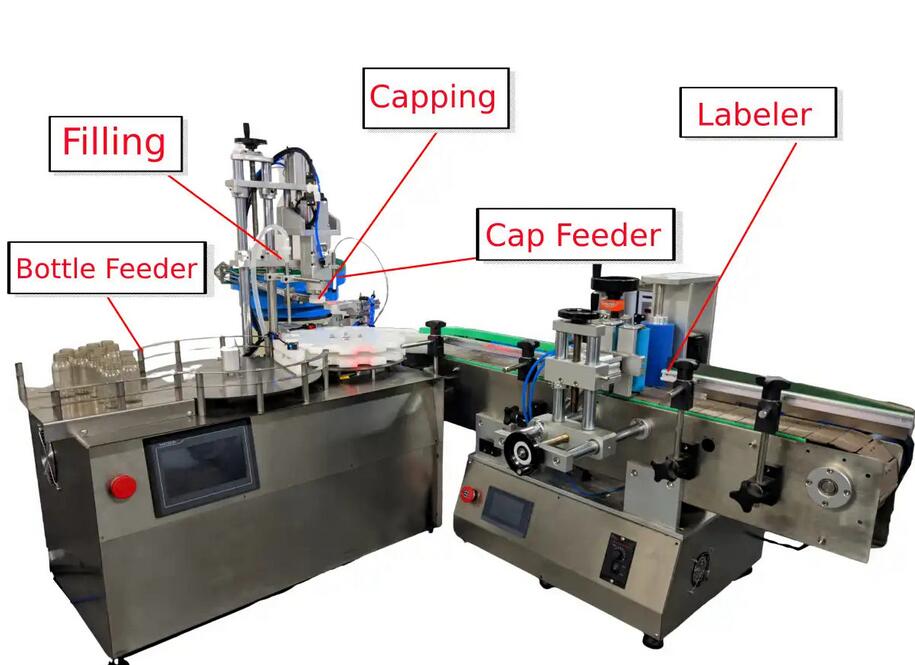

1. 3-in-1 Filling, Labeling, and Capping Mini Production Line
Unlike modular lines that require extensive conveyor setups, this all-in-one unit utilizes a streamlined workflow. This compact structure ensures that even facilities with limited space can achieve full-scale industrial automation.
2. High-Precision Performance
Filling Accuracy: Leveraging high-grade sensors to achieve ±1% filling tolerance.
Labeling Precision: Achieve a remarkable ±0.5mm accuracy, ensuring your brand presentation is flawless even on small-diameter bottles.
3. Rapid Changeover
Whether you are switching from 20ml vials to 100ml juice bottles, the adjustable components allow for quick recalibration.

Technical Specifications

Model	SKYONE-LINE-002
Labeling
Labeling Accuracy	±0.5mm
Labeling Speed	25-35 pcs/min
Label Size	L:25-285mm; W:25-100mm
Product Size	Diameter:25-100mm; H:25mm-300mm
Weight	About 85kg
Power	500W
Filling
Filling Accuracy	±1%
Filling Range	20-100ml(customizable)
Filling Speed	15-25 bottles / min
Bottle Size	H:35-150mm Diameter:14-42mm(customizable)
Maximum Flow	6L / min
Weight	About 300kg
Power	1500W
Capping
Cap Size Diameter	12-60mm(accept customzied)
Capping Speed	20-35/min
Cap Type	screw caps

Operation Video

3-in-1 Filling Labeling Capping Mini Production Line

Core Components Details

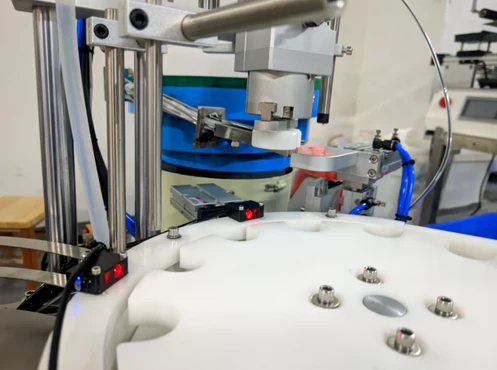

Precision Starwheel Indexing

Custom-engineered from wear-resistant POM, this CNC-machined starwheel ensures flawless bottle synchronization. It perfectly centers every container (Ø25-100mm) under the filling and capping stations, preventing tipping even during high-speed operation.

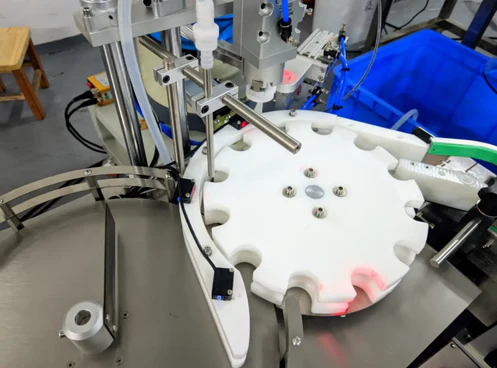

Smart "No Bottle, No Fill" Sensors

Equipped with high-sensitivity infrared sensors, the system detects empty slots in real-time. The filling nozzle only triggers when a bottle is present, achieving ±1% accuracy while eliminating product waste and keeping the work area clean.

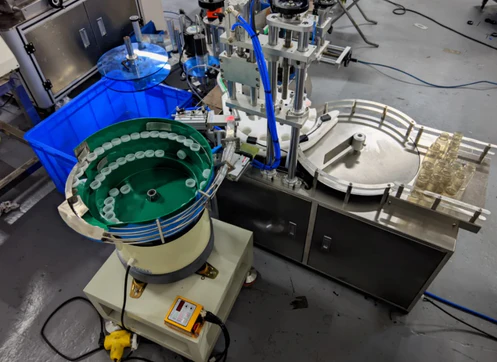

Automatic Sorting & Pneumatic Capping

Integrated with a vibratory bowl feeder and pneumatic cylinders, this unit automates cap alignment and sealing. It provides consistent torque for caps (Ø12-60mm), ensuring a leak-proof seal without damaging threads.

WHY CHOOSE US

Solution Provider

We will offer professional advice according to customization requirements, and draw 3D drawings within one day.

Experienced Engineers

We have an engineering team with over 20 years experience, offering text communication and video, and on-site guidance in English.

Professional R&D Team

Develop 30 to 50 units each year to meet different customers' need and support OEM order.

One Year Warranty

Within one year, you can replace part if damage not caused by human factors.

Lifetime Maintenance

A customer, a lifetime friend. We will continue to provide service in the future.

More Services

Sticking label service, printing label service, testing sample service and some overseas shipping warehouses.

Labeling Machine FAQ

Q1. What is the estimated lead time for this all-in-one machine? A: Standard units are typically ready for dispatch within 1-3 business days. For customized configurations (filling volume or specific cap types), please contact our technical team for a detailed schedule.

Q2. Does the HMI system support languages other than English? A: Yes. The PLC touchscreen comes with a standard English interface. We also support multi-language customization, including Spanish, German, French, Russian, and Korean.

Q3. Can I integrate a coding or branding printer with this line? A: Absolutely. We offer integrated solutions for date coders (for batch/expiry dates) or Zebra thermal printers (for complex labels and barcodes). These can be synchronized directly with the labeling station.

Q4. Is the machine difficult to set up or install? A: Not at all. The machine features a Plug-and-Play design. It arrives fully assembled; you only need to thread the labels and set your filling parameters via the HMI to begin production. No complex mechanical installation is required.

Q5. What are the conveyor and power specifications? A: The standard conveyor width is 100mm (customizable for larger bottles). The machine operates on a 220V power supply by default. However, we provide 110V adapters or custom voltage configurations to match your local industrial standards.

Q6. What is the maximum label size supported? A: The standard labeling station handles labels up to 285mm (L) x 100mm (W). If your branding requires oversized or wrap-around labels, we provide custom sensor and roller adjustments to meet your needs.

Q7. How do I get an accurate price quote? A: To provide the most competitive and accurate pricing, please send us your bottle dimensions, liquid viscosity, and label samples. Our engineers will verify the compatibility and send a formal quote within 24 hours.

Reliability is our priority. Every machine undergoes a rigorous 72-hour aging test before shipment to ensure stable performance.
