Is It Feasible To Use One Labeling Machine For Both Round Bottles And Flat Bottles Of Various Sizes?

Many food, cosmetic, and beverage processing factories encounter the same problem: their product lines are diverse, including round bottles like olive oil and sauces, as well as flat and square bottles like salad dressings and personal care products. Different bottle types have varying sizes and specifications. If each type of bottle requires its own labeling machine, the equipment investment cost will be high, the workshop space will be large, and the subsequent maintenance will be cumbersome. Many purchasing managers and distributors will ask: is it feasible to use one labeling machine for multiple bottle types?

The answer is yes, but with a condition. Many low-cost labeling machines have fixed structures and require changing fixtures and molds to switch bottle types. The debugging process takes a long time, and even single bottle types can only be used. The flexibility is very poor. However, our **fully automatic single-side + positioning round bottle labeling machine adopts a modular adjustable structure. One machine can be compatible with round bottles, square bottles, flat bottles, and irregular-shaped bottles for single-side labeling. It also takes into account positioning accuracy and the efficiency of model changes, perfectly adapting to flexible production with multiple SKUs.

For equipment distributors, the ability to use one machine for multiple purposes is the core selling point that can impress customers, especially for small factories and brand contract manufacturers. It helps customers reduce equipment budgets and save workshop space. Now let's break down how this machine achieves multi-bottle type compatibility while ensuring stable labeling results.

1. Tool-free modular adjustment structure, quick switch of different bottle types

When changing bottle types in traditional labeling machines, it requires disassembling fixtures and replacing molds. It must be attended by technicians for debugging. Each change takes more than half an hour, and frequent changes can seriously slow down production capacity.

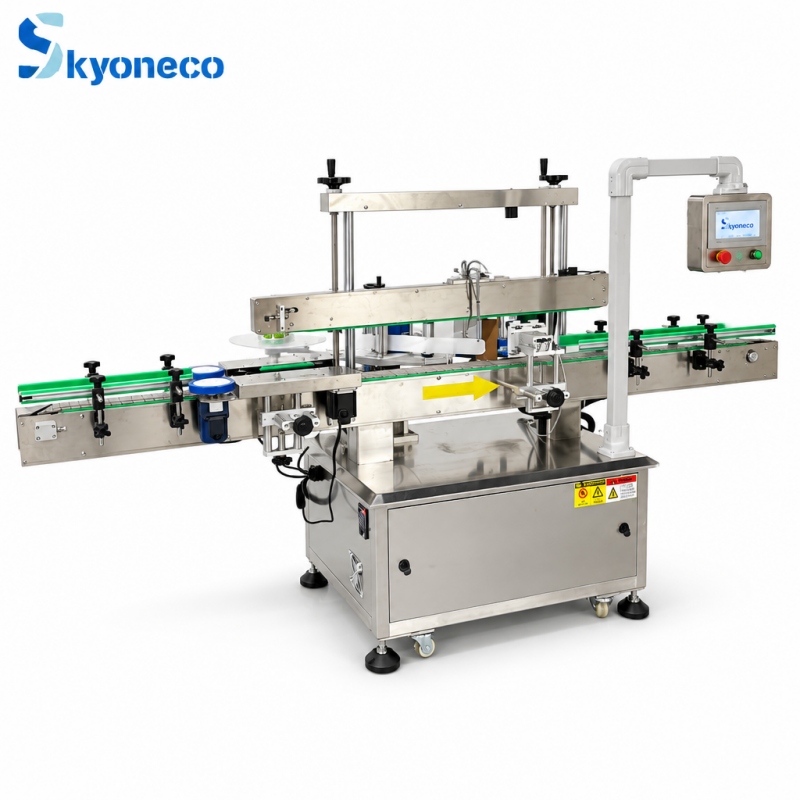

This single-side positioning labeling machine adopts a tool-free modular design. The conveying guide rail, limit block, labeling head, and pressure applying rubber roller can all be manually adjusted without disassembling parts. It can complete the switch of different bottle types and different sizes of products in 3 minutes.

Applicable specifications: bottle diameter 30–100mm, bottle height 30–400mm, labels support a length of 10–300mm and a width of 10–130mm. It covers most food, cosmetics, and sauce containers on the market. Whether it's a cylindrical round bottle or a flat, square, or slightly irregular-shaped bottle, just adjust the limiters and it can be put into production.

2. High-precision positioning labeling system,  ±1mm labeling accuracy for multiple bottle types

Many multi-functional labeling machines have a common problem: the more compatible bottle types, the lower the accuracy. Round bottles are prone to misalignment, and flat bottles have skewed labels.

This machine is equipped with high-precision photoelectric sensors + bottle body positioning stop rotation mechanism. In the round bottle mode, it can lock the bottle angle to ensure the label is aligned with the bottle logo, groove, or inkjet position; when switching to flat bottles, square bottles, or irregular-shaped bottles, the limit guiding structure automatically corrects the bottle body posture, and the labeling pressure is dynamically balanced, ensuring the label is flat and adheres without bubbles, warping, or wrinkles.

Paper labels, PET labels, and transparent self-adhesive labels can all be stably adapted. Whether it's round bottle round circumference positioning labeling or flat bottle single-side labeling, the error is stably controlled within ±1mm, meeting the unified packaging appearance standards of brand manufacturers.

3. Intelligent sensing system, reducing label waste in multi-specification mixed production

When multiple specifications of products are produced in rotation, it is more likely to encounter bottle jams, missing bottles, and tilted bottle placement. Ordinary equipment will continuously label, resulting in a large amount of label waste. The equipment is equipped with an intelligent material sensing recognition system that detects the bottle. Only when the bottle reaches the labeling station will the machine trigger the labeling; if no bottle is detected, it will automatically pause the labeling, eliminating empty labeling and waste labeling. At the same time, the conveying guiding mechanism continuously corrects the bottle position, reducing labeling defects caused by bottle type changes and unstable feeding. The label waste rate is controlled within 1%, and long-term production continuously saves self-adhesive label material costs.

4. Solid stainless steel and aluminum body, wide speed range to meet production

The main body of the entire machine is made of stainless steel and aluminum alloy, which is corrosion-resistant and meets the hygiene production requirements for the food and cosmetics industries. The machine body is stable and does not shake easily during long-term continuous operation.

The labeling speed is 30–120 bottles per minute, and the speed can be adjusted continuously. It is suitable for both small batch trial production and large-scale mass production. It can be used independently as a single machine or connected to filling and capping production lines to form an automated packaging line.

The standard voltage is 220V/50 (60) Hz. Customized voltage is also supported, and it is compatible with power supply environments in various countries around the world. The total power of the machine is 2500W, and the weight is approximately 275kg. The structure is compact and does not occupy too much workshop space.
